Sta-Rite Pumps

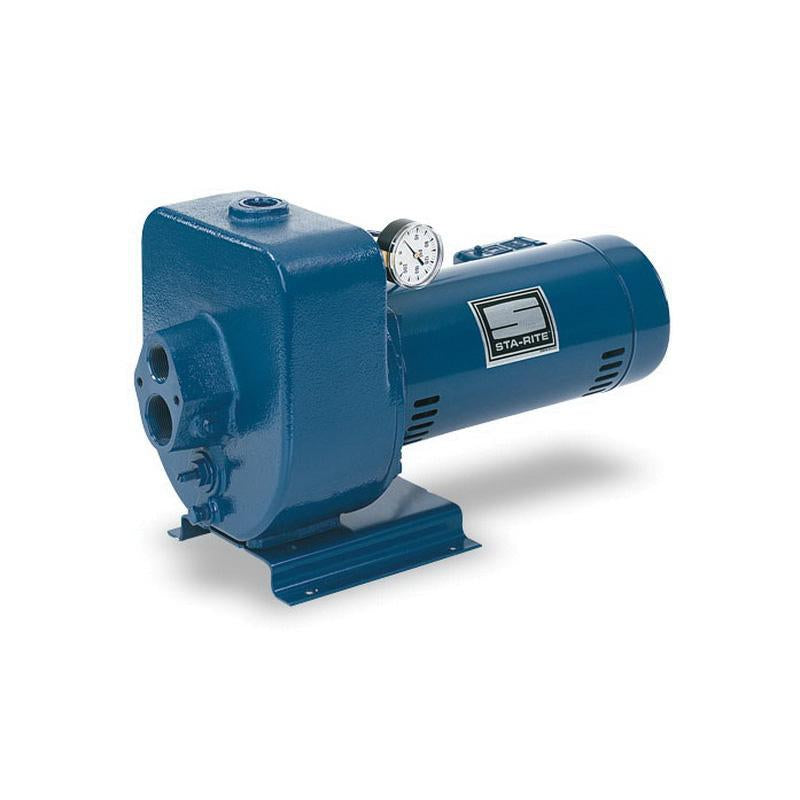

HMSF-1FL Pentair Sta-Rite HMS Series Multi-Stage Jet Pumps (1-1/2 HP, 1 Phase, 1-1/4" Suction, 1" Drive, 1" Discharge, 2 Stages, 115/230 Voltage, Cast Iron, 30-50 PSI)
HMSF-1FL Pentair Sta-Rite HMS Series Multi-Stage Jet Pumps (1-1/2 HP, 1 Phase, 1-1/4" Suction, 1" Drive, 1" Discharge, 2 Stages, 115/230 Voltage, Cast Iron, 30-50 PSI)
[COUNT] shoppers are looking at this right now
SKU:HMSF-1FL
Regular price
$1,954.21 USD
Regular price
$3,857.00 USD
Sale price
$1,954.21 USD
Shipping calculated at checkout.
Quantity
View price in cart
Couldn't load pickup availability
Sta-Rite HMSF-1FL, Sta-Rite Multi-Stage Jet Pump, HMS Series, 1-1/2 HP, 1-1/4" Suction, 1" Drive, 1" Discharge, 2 Stages, 115/230 Voltage, cast iron,
| Applications |
| Water systems and sprinkling for homes, farms and cottages. |
| Features |
| Automatic Pressure Regulator: Faster acting and quieter, design eliminates hunting for correct drive pressure. New improved stem and guide are precisely molded to assure efficient, trouble-free performance on all deep wells. |
| Quality Construction: Close-grained cast iron pump body is rugged, one-piece unit, specially treated to resist corrosion. Drain port provided for easy winterizing. |
| Precision-Machined Diffusers: Assure faster priming. |
| Mechanical Shaft Seal: Precision-lapped and highly polished carbon-ceramic, stainless steel construction. Internal design guarantees continuous water lubrication for maximum protection. |
| Polycarbonate Impellers: Precision molded for perfect balance, and ultra smooth for highest performance and efficiency. |
| Motor Windings: Superior insulation materials protect against excessive moisture and contaminants to ensure prolonged motor life. |
| Dustproof Cover: All electrical components are protected from dirt, dust and insects by a dustproof canopy. Ventilating air cannot contaminate vital switching components. This eliminates the most common cause of motor failure. |
| Balanced Rotor: Diecast under high pressures for uniform performance and greater efficiency...dynamically balanced. |
| Heavy-Duty Ball Bearings: Shielded, permanently lubricated bearings are extensively tested to ensure extended life and smooth, quiet operation. |
| Pump and Motor Shaft: Stainless steel for maximum corrosion resistance;. one-piece threaded shaft for positive impeller drive and alignment. |
|
Specifications |
|
|
Brand
|
Sta-Rite
|
|
Catalog Number
|
HMSF-1FL
|
|
Type
|
Sta-Rite Multi-Stage Jet Pump
|
|
Series
|
HMS Series
|
|
HP
|
1-1/2
|
|
Suction
|
1-1/4"
|
|
Drive
|
1"
|
|
Discharge
|
1"
|
|
Stages
|
2
|
|
Voltage
|
115/230
|
|
Body Material
|
cast iron
|
|
Pressure Switch Pre-Set
|
30-50 PSI
|
|
Warranty
|
1 year limited warranty
|
|
