Sta-Rite Pumps

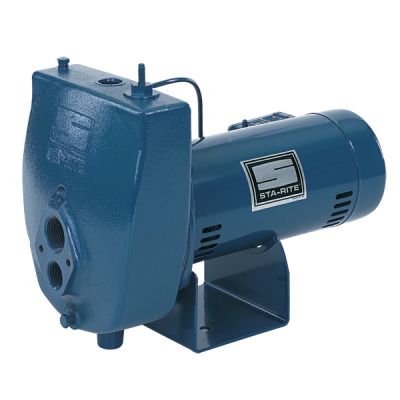

HLE-L Pentair Sta-Rite Pumps Self-Priming Convertible Jet Pump (HL Series, 1 HP, 1-1/4" Suction, 1" Discharge, 115/230 Volt, 1 Phase, Cast Iron)

HLE-L Pentair Sta-Rite Pumps Self-Priming Convertible Jet Pump (HL Series, 1 HP, 1-1/4" Suction, 1" Discharge, 115/230 Volt, 1 Phase, Cast Iron)

👁️ [COUNT] People are currently viewing this product.

HLE-L

$1,022.59 USD
$2,099.00 USD $1,022.59 USD
Sale Sold out
Shipping calculated at checkout.

Don't see the price?

If you are unable to find the price for this item on our page, please contact us directly for a quote.

Some products require you to ADD TO CART to see the price.

Tax

NY, NJ and CT will be charged tax on most orders.

Sales tax will need to be collected on all AMT and Jorc products, regardless of the destination state.

* If you are tax exempt and would like to place an order, email your tax exempt form to Sales@kgpowersystems.com.

** Taxes may be applied after an order is placed.

Sta-Rite Pumps HLE-L, Cast Iron, Self-Priming Convertible Jet Pump Type, 1 HP, Deep Well Jet Pump Type, 1-1/4" Suction, 1" Discharge, 115/230 Motor Voltage,
Applications
The ProJet HL convertible jet pumps offer a proven cast iron self-priming design available in 1/2 1 HP models. The ProJet HL convertible jets utilize built-in regulators offering easier priming and better range of performance from a complete line of shallow well, 4" double pipe, 2" and 3" single pipe jet packages.
Features
Quality Construction: Close-grained cast iron pump body is a rugged one-piece unit, specially treated to resist corrosion. Drain port provided for easy winterizing.
Noryl Impeller: Precision-molded for perfect balanceultra-smooth for highest performance and efficiency.
Precision-Molded Diffuser: Pump primes faster, handles more air, with multi-port, precision-molded, reinforced polypropylene diffuser.
Pressure Switch: High quality, cut-in and differential pressure setting are adjustable.
Mechanical Shaft Seal: Precision lapped and highly polished carbon-ceramic, stainless steel construction. Internal design guarantees continuous water lubrication for maximum protection.
Motor Windings: Superior insulation materials protect against excessive moisture and contaminantsassures prolonged motor life.
Balanced Rotor: Diecast under high pressures for uniform performance and greater efficiencydynamically balanced.
Heavy-Duty Ball Bearings: Shielded, permanently lubricated bearings, extensively tested to ensure extended life and smooth, quiet operation.
Pump and Motor Shaft: 416 stainless steel for maximum corrosion resistance; one-piece threaded shaft for positive impeller drive and alignment.

Specifications

Brand
Sta-Rite Pumps
Catalog Number
HLE-L
Type
Cast Iron, Self-Priming Convertible Jet Pump
Series
HL Series
HP
1
Type
Deep Well Jet Pump
Suction
1-1/4"
Drive
1"
Discharge
1"
Motor Voltage
115/230
Approx Weight (lbs)
65
Body
Cast Iron
Max Temp (F)
140
Pressure Gauge
0-100 PSI
Pressure Gauge
Included
Notes
See Support Documents

Support Documents (pdf)
