Sta-Rite Pumps

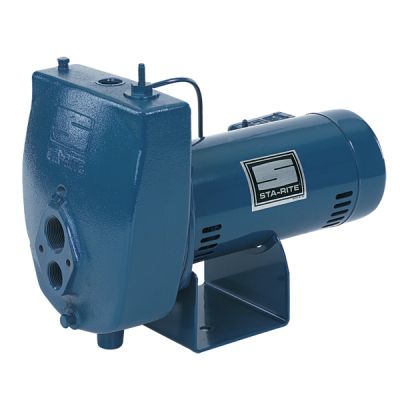

HLC-L Pentair Sta-Rite Pumps Self-Priming Convertible Jet Pump (HL Series, 1/2 HP, 1-1/4" Suction, 1" Discharge, 115/230 Volt, 1 Phase, Cast Iron)

HLC-L Pentair Sta-Rite Pumps Self-Priming Convertible Jet Pump (HL Series, 1/2 HP, 1-1/4" Suction, 1" Discharge, 115/230 Volt, 1 Phase, Cast Iron)

[COUNT] shoppers are looking at this right now

HLC-L

$794.16 USD
$1,489.00 USD $794.16 USD
Sale Sold out
Shipping calculated at checkout.

View price in cart
Sta-Rite Pumps HLC-L, Cast Iron, Self-Priming Convertible Jet Pump Type, 1/2 HP, Deep Well Jet Pump Type, 1-1/4" Suction, 1" Discharge, 115/230 Motor Voltage,
Applications
The ProJet HL convertible jet pumps offer a proven cast iron self-priming design available in 1/2 1 HP models. The ProJet HL convertible jets utilize built-in regulators offering easier priming and better range of performance from a complete line of shallow well, 4" double pipe, 2" and 3" single pipe jet packages.
Features
Quality Construction: Close-grained cast iron pump body is a rugged one-piece unit, specially treated to resist corrosion. Drain port provided for easy winterizing.
Noryl Impeller: Precision-molded for perfect balanceultra-smooth for highest performance and efficiency.
Precision-Molded Diffuser: Pump primes faster, handles more air, with multi-port, precision-molded, reinforced polypropylene diffuser.
Pressure Switch: High quality, cut-in and differential pressure setting are adjustable.
Mechanical Shaft Seal: Precision lapped and highly polished carbon-ceramic, stainless steel construction. Internal design guarantees continuous water lubrication for maximum protection.
Motor Windings: Superior insulation materials protect against excessive moisture and contaminantsassures prolonged motor life.
Balanced Rotor: Diecast under high pressures for uniform performance and greater efficiencydynamically balanced.
Heavy-Duty Ball Bearings: Shielded, permanently lubricated bearings, extensively tested to ensure extended life and smooth, quiet operation.
Pump and Motor Shaft: 416 stainless steel for maximum corrosion resistance; one-piece threaded shaft for positive impeller drive and alignment.

Specifications

Brand
Sta-Rite Pumps
Catalog Number
HLC-L
Type
Cast Iron, Self-Priming Convertible Jet Pump
Series
HL Series
HP
1/2
Type
Deep Well Jet Pump
Suction
1-1/4"
Drive
1"
Discharge
1"
Motor Voltage
115/230
Approx Weight (lbs)
42
Body
Cast Iron
Max Temp (F)
140
Pressure Gauge
0-100 PSI
Pressure Gauge
Included
Notes
See Support Documents

Support Documents (pdf)
