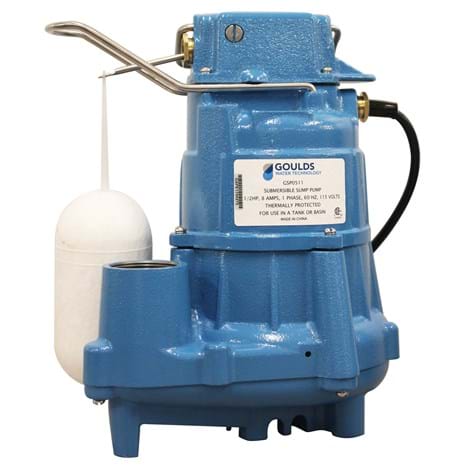

GSP0511 Goulds Cast Iron Sump / Effluent Pump w/ Vertical Float Switch (GSP Series, 1/2HP 1/60/115)

1/2 HP - 115 Volt - Vertical Float - 15 Foot Cord

APPLICATIONS

Specially designed for the following uses:

• Basement draining

• Water transfer

• Dewatering

• Filtered Effluent

FEATURES

• Reliable Mechanical switch coupled with solid oat for dependable performance

• Cast Iron Motor Housing allowing for optimal heat dissipation

• Approved for Residential use (CSA/CUS Listed).

• Premium Mechanical Seal design provides superior protection against sand and abrasive damage (Silicon Carbide/Carbon/BUNA)

• Engineered motor designed for peak hydraulic performance without overloading.

• Cast Iron Suction Strainer encompasses entire base – designed to reduce debris entry

• Corrosion resistant hardware for lifetime use

SPECIFICATIONS

• 1/2 HP 115 Volt 60 Hz single phase, 10 amps maximum

• Discharge size: 1 ½" NPT.

• Capacities: to 70 GPM.

• Maximum head: 23 foot TDH

• Maximum solids handling: ½" spherical

• Mechanical seal: Silicon Carbide-Carbon-BUNA

• Automatic vertical float switch

• Power Cord: 15 foot length with NEMA 5-15P plug
