• Goulds Pumps WS0518BF Submersible Sewage Pump (1/2 HP, 208 Volts, 1-Phase)
1 1

Goulds Pumps

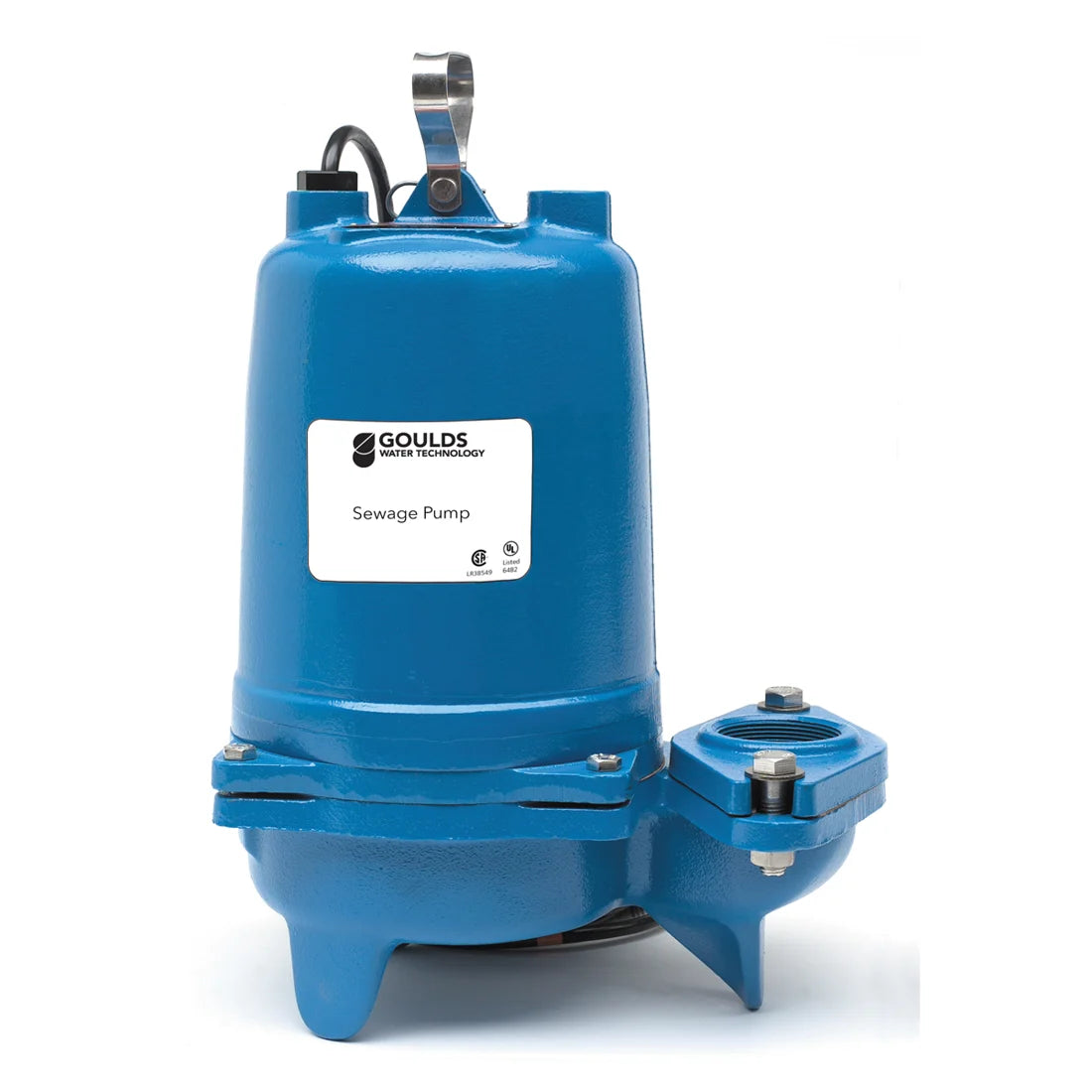

Goulds Pumps WS0518BF Submersible Sewage Pump (1/2 HP, 208 Volts, 1-Phase)

Goulds Pumps WS0518BF Submersible Sewage Pump (1/2 HP, 208 Volts, 1-Phase)

WS0518BF

$1,255.96 USD
$1,951.00 USD $1,255.96 USD
Sale Sold out
Shipping calculated at checkout.

Don't see the price?

Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.

WS0518BF Goulds Submersible Sewage Pump (1/2 HP, 208 VOLTS, 2" MAX Solids, 21' MAX HEAD, 160 MAX GPM, SINGLE PHASE)

Applications
This Goulds Pump is specifically designed for the following uses: Homes, Sewage Systems, Dewatering/Effluent, Water Transfer, Light Industrial
Features
Impeller: Cast iron, semi-open, dynamically balanced, non-clog with pump out vanes for mechanical seal protection. Optional Silicon bronze impeller available.
Casing: Cast iron volute type for maximum efficiency. Designed for easy installation on A10-20 guide rail or base elbow rail systems.
Mechanical Seal: SILICON CARBIDE VS. SILICON CARBIDE sealing faces for superior abrasive resistance, stainless steel metal parts, BUNA-N elastomers.
Shaft: Corrosion-resistant stainless steel. Threaded design. Locknut on all models to guard against component damage on accidental reverse rotation.
Fasteners: 300 series stainless steel.
Capable of running dry without damage to components.
Designed for continuous operation when fully submerged.

Tech Specs

Brand
Goulds Pumps
Model Number
WS0518BF
HP
1/2
PHASE
SINGLE
VOLTS
208
RPM
1750
IMPELLER DIA. (IN.)
5
MAX. AMPS.
8
LOCKED ROTOR AMPS
19.5
KVA CODE
K
LOAD MOTOR EFF. %
51
RESISTANCE START
9.1
RESISTANCE LINE-LINE
4.2
WEIGHT (LBS.)
65
DISCHARGE SIZE
2" NPT COMPANION FLANGE
SOLIDS HANDLING CAPABILITIES
2" MAX
MAX HEAD
21'
MAX GPM
160
NOTES
EXTENDED WARRANTY AVAILABLE

Support Documents (pdf)

Goulds Literature
