Goulds Pumps

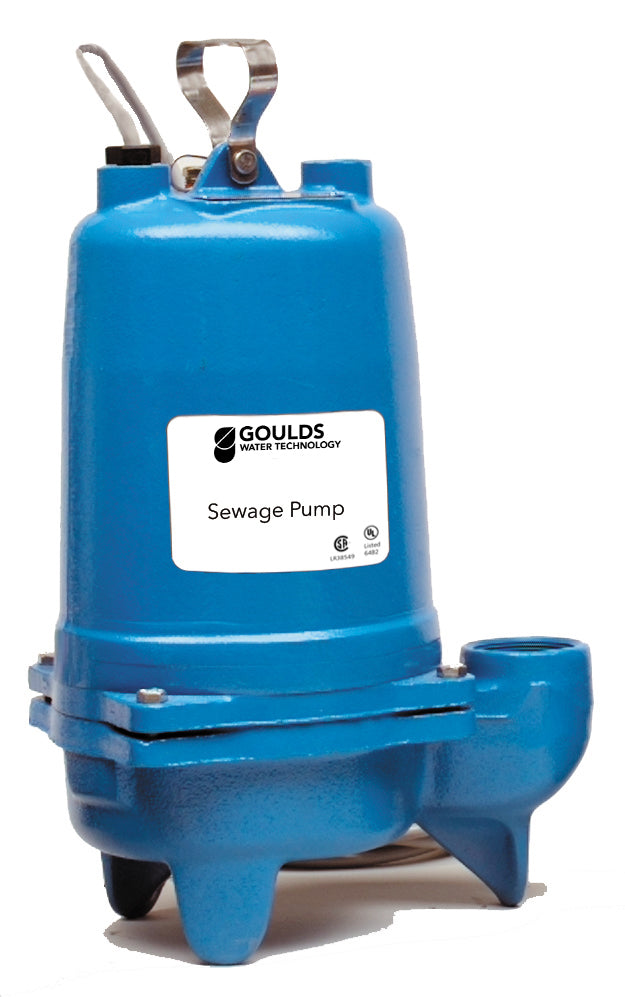

Goulds Pumps WS0511B Submersible Sewage Pump (1/2 HP, 115 Volts, 1-Phase)
Goulds Pumps WS0511B Submersible Sewage Pump (1/2 HP, 115 Volts, 1-Phase)
👁️
[COUNT] People are currently viewing this product.
No reviews
SKU:WS0511B
Regular price
$1,104.60 USD
Regular price
$1,841.00 USD
Sale price
$1,104.60 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Don't see the price?
Don't see the price?
If the item's price is not displayed on this page, you might need to contact us for a quote or add the item to your cart to see the price.
WS0511B Goulds Submersible Sewage Pump (1/2 HP, 115 VOLTS, 2" NPT , 26' Max Head, 160 Max GPM, SINGLE PHASE)
| Applications | |
| This Goulds Pump is specifically designed for the following uses: Homes, Sewage Systems, Dewatering/Effluent, Water Transfer | |
| Features | |
| Impeller: Cast iron, semi-open, dynamically balanced, non-clog with pump out vanes for mechanical seal protection. Optional Silicon bronze impeller available. | |
| Casing: Cast iron volute type for maximum efficiency. Designed for easy installation on A10-20 guide rail or base elbow rail systems. | |
| Mechanical Seal: SILICON CARBIDE VS. SILICON CARBIDE sealing faces for superior abrasive resistance, stainless steel metal parts, BUNA-N elastomers. | |
| Shaft: Corrosion-resistant stainless steel. Threaded design. Locknut on all models to guard against component damage on accidental reverse rotation. | |
| Fasteners: 300 series stainless steel. | |
| Capable of running dry without damage to components. | |
| Designed for continuous operation when fully submerged. | |
Tech Specs | |
Brand |
Goulds Pumps |
Model Number |
WS0511B |
HP |
1/2 |
PHASE |
SINGLE |
VOLTS |
115 |
RPM |
1750 |
IMPELLER DIA. (in.) |
5 |
MAX. AMPS |
14.5 |
LRA |
31.1 |
KVA CODE |
J |
FULL LOAD MOTOR EFF. |
55 |
RESISTANCE START |
9.3 |
RESISTANCE LINE-LINE |
1.4 |
WEIGHT (LBS.) |
65 |
Discharge Size |
2" NPT |
Solids Handling Capabilites |
2" Max |
Max Head |
26' |
Max GPM |
160 |
Support Documents (pdf) | ||||
| Goulds Literature | ||||
