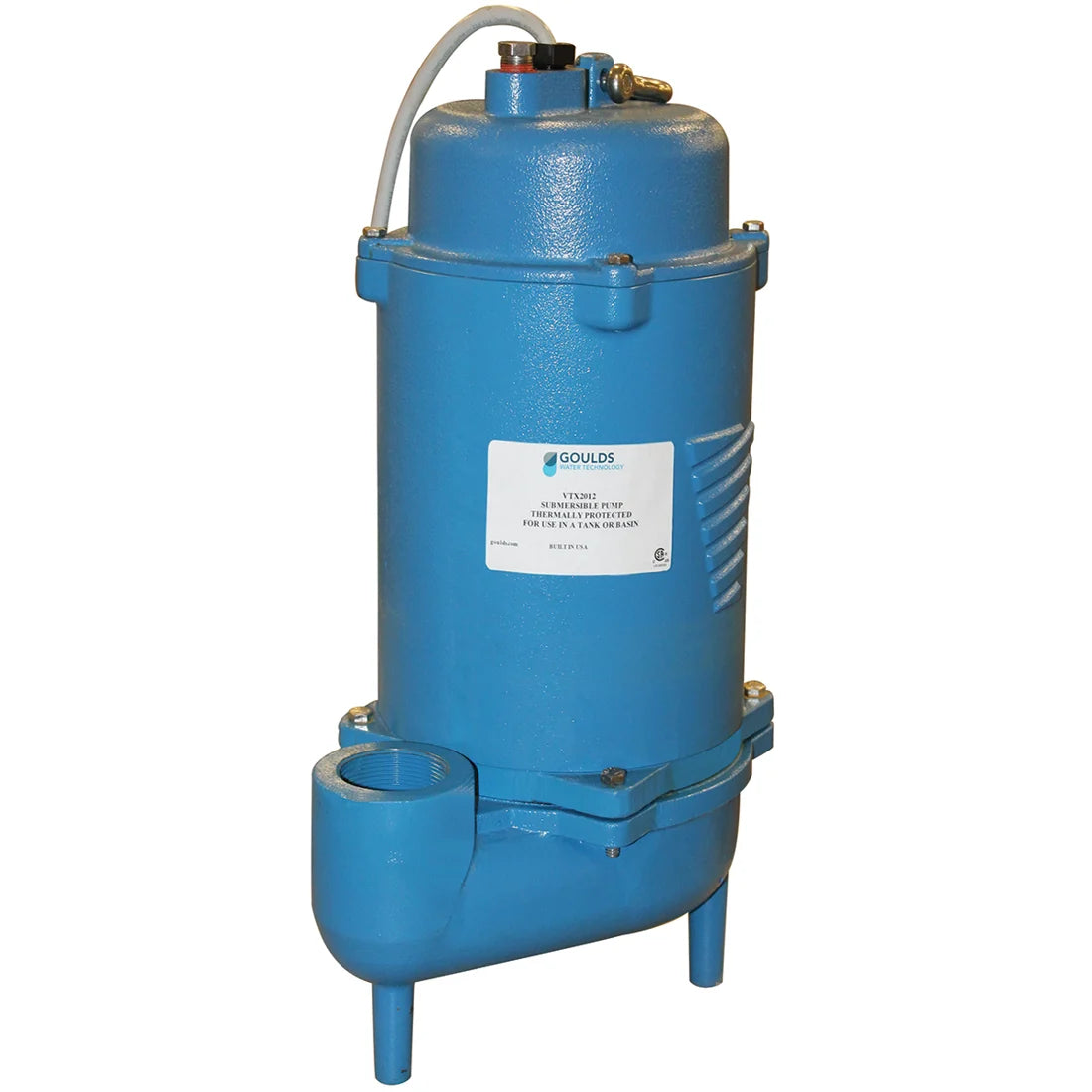

Goulds VTX0512 Submersible Sewage Pump (.5 HP, 1 Phase, 230 Volts, 3500 RPM, 208 GPM, 2" NPT Discharge)
Goulds VTX0512 Submersible Sewage Pump (.5 HP, 1 Phase, 230 Volts, 3500 RPM, 208 GPM, 2" NPT Discharge)
[COUNT] shoppers are looking at this right now
No reviews
SKU:VTX0512
Regular price
$1,000.20 USD
Regular price
$1,667.00 USD
Sale price
$1,000.20 USD
Shipping calculated at checkout.
Quantity
View Price in Cart
Couldn't load pickup availability
VTX0512 Goulds Submersible Sewage Pump (.5 HP, 1 Phase, 230 Volts, 3500 RPM, 208 GPM)
| Applications |
| Specifically designed for the following uses: Homes, Water transfer, Sewage systems, Light industrial, Dewatering/Effluent, Commercial applications. Anywhere waste or drainage must be disposed of quickly, quietly and efficiently. |
| Features |
| Impeller: Cast iron, multi-vane, vortex style |
| Casing: Cast iron volute for maximum efficiency. Designed for easy installation on A10-20 slide rail or base elbow rail systems. |
| Mechanical Seal: SILICON CARBIDE VS. SILICON CARBIDE sealing faces for superior abrasive resistance, stainless steel metal parts, BUNA-N elastomers. |
| Shaft: Corrosion-resistant, 300 series stainless steel. Threaded design. Locknut on all models to guard against component damage on accidental reverse rotation. |
| Fasteners: 300 series stainless steel. |
| Capable of running dry without damage to components. |
| Designed for continuous operation when fully submerged. |
| Solids handling capabilities: 2" maximum |
| Capacities: up to 208 GPM |
| Total heads: up to 66 feet TDH |
| Fully submerged in high grade turbine oil for lubrication and efficient heat transfer. All ratings are within the working limits of the motor. |
|
Specifications |
|
|
Brand
|
Goulds
|
|
Catalog Number
|
VTX0512
|
|
Type
|
Submersible Sewage Pump
|
|
Series
|
VTX Series
|
|
HP
|
.5
|
|
Phase
|
1
|
|
Volts
|
230
|
|
RPM
|
3500
|
|
Impeller Diameter (in.)
|
3.13
|
|
Maximum Amps
|
7.7
|
|
Total Head (Max)
|
66 feet TDH
|
|
GPM (Max)
|
208
|
|
Discharge Size
|
2" NPT
|
|
Locked Rotor Amps
|
35.7
|
|
KVA Code
|
K
|
|
Full Load Motor Efficiency (%)
|
71
|
|
Resistance Main (White-Black)
|
1.6 - 1.8
|
|
Resistance Phase (White-Brown)
|
3.7 - 4.0
|
|
Temperature (Continuous)
|
104F (40C) continuous
|
|
Temperature (Intermittent)
|
140F (60C)
|
|
Warranty
|
Call for more information
|
|
