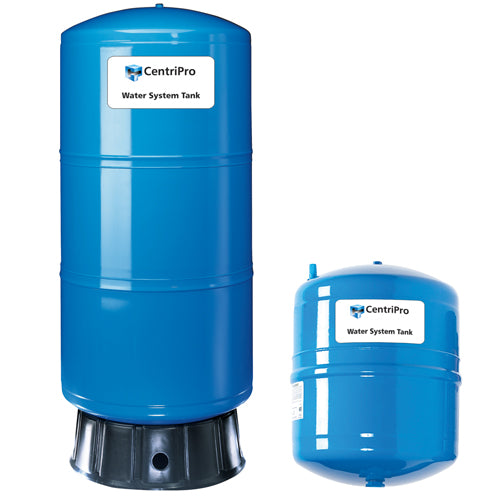

Goulds Pumps T260 Water Pressure Tank, Diaphragm (84.9 Gallons, Stand Type)

Name: Goulds Pumps T260 Water Pressure Tank, Diaphragm (84.9 Gallons, Stand Type)
Brand: Goulds Pumps
SKU: T260
Price: 1725.73 USD
Availability: InStock

SKU:T260

$1,725.73 USD

~~$2,116.00 USD~~ $1,725.73 USD

Sale Sold out

Shipping calculated at checkout.

Quantity

Don't see the price?

If the item's price is not displayed on this page, you might need to contact us for a quote or add the item to your cart to see the price.

T260 Goulds Pressure Tank, Diaphragm (84.9 Gallons, Stand Type, Epoxy Coated , )

Applications
Homes, Farms, Cottages

Features
Deep Drawn Steel Shell
Heavy Duty Diaphgram
Interior Tank Lining
Epoxy Coated System Connection
Heavy Duty High Density Polypropylene Base

Tech Specs
Brand	Goulds Pumps
Model Number	T260
Total Volume (Gals.)	84.9
Type	Stand
Tank	Epoxy Coated
Drawdown in Gals. @ 20/40 PSIG	31.2
Drawdown in Gals. @ 30/50 PSIG	26.2
Drawdown in Gals. @ 40/60 PSIG	22.8
Maximum Drawdown Vol. (Gals.)	44.7
PSI Pre-Charge	38
System Connection	11?4" NPTF
Diameter	22
Height	6011?16
Series	T Series Epoxy Coated Diaphragm Tank
Notes	See Goulds Literature

Support Documents (pdf)
Goulds Literature

Questions about this product? Contact our team!
Product images may be generic.

View full details
