• Goulds Pumps PE51M Submersible Effluent Pump (1/2 HP, 115 Volts, 1 Phase, 1-1/2" NPT Discharge, Manual, 20 ft. Cord)
1 1

Goulds Pumps

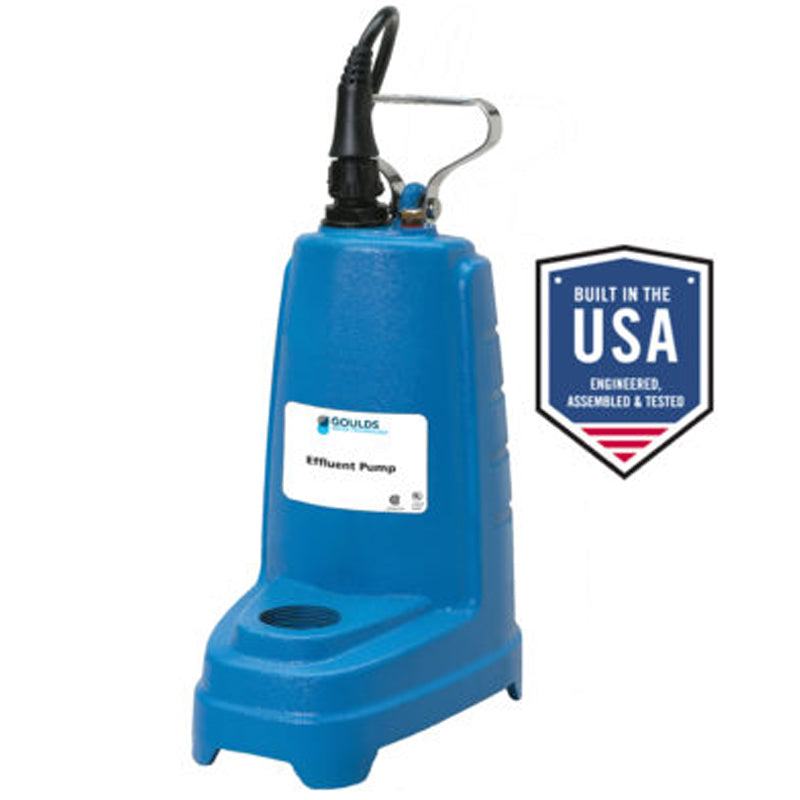

Goulds PE51M Submersible Effluent Pump (1/2 HP, 115 Volts, 1 Phase, 1-1/2" NPT Discharge, Manual, 20 ft. Cord)

Goulds PE51M Submersible Effluent Pump (1/2 HP, 115 Volts, 1 Phase, 1-1/2" NPT Discharge, Manual, 20 ft. Cord)

[COUNT] shoppers are looking at this right now

PE51M

$545.23 USD
$886.00 USD $545.23 USD
Sale Sold out
Shipping calculated at checkout.

View Price in Cart
Goulds PE51M, Submersible Effluent Pumps Type, PE Series, 0.5 HP, 115 Voltage, 1 Phase, Manual / No Switch, 20' Cord, 70 Max GPM,
Applications
Specially designed for the following uses: On-site wastewater treatment, Mound Systems, Effluent/Dosing Systems, Low Pressure Pipe Systems, Basement Draining, Heavy Duty Sump/Dewatering. Residential Wastewater
Features
Built-in thermal overload protection with automatic reset.
Corrosion resistant construction and Cast iron body
Thermoplastic impeller and cover
Upper sleeve and lower heavy duty ball bearing construction
Motor is permanently lubricated for extended service life
Powered for continuous operation
All ratings are within the working limits of the motor
Quick disconnect power cord, 20? standard length, heavy duty 16/3 SJTW with NEMA 5-15P, three prong, 115 volt grounding plug
Complete unit is heavy dury, portable and compact
Mechanical seal is carbon, ceramic, BUNA and stainless steel
Stainless steel fasteners

Specifications

Brand
Goulds
Catalog Number
PE51M
Type
Submersible Effluent Pumps
Series
PE
Application
Wastewater treatment
HP
1/2
Voltage
115
Amps
9.5
Min. Circuit Breaker
20
Phase
1
Float Style
Manual / No Switch
Cord
20'
Discharge (NPT)
1.5"
Minimum Basin Diameter
18"
Maximum Solids Size
.5"
Max GPM
70
Max TDH (Ft.)
37
Operation
Manual
Pump Body
Cast iron
Impeller Material
Thermoplastic
Flow at 5 ft
N/A
Flow at 10 ft
67 gpm
Flow at 15 ft
59 gpm
Flow at 20 ft
50 gpm
Flow at 25 ft
39 gpm
Flow at 30 ft
26 gpm
Flow at 35 ft
8 gpm
Motor Design
PSC (Permanent Split Capacitor)
Motor Insulation
Class B
Thermal Protection
Yes
Maximum Temperature
104°F
Notes
See Support Documents

Support Documents (pdf)
