Goulds Pumps

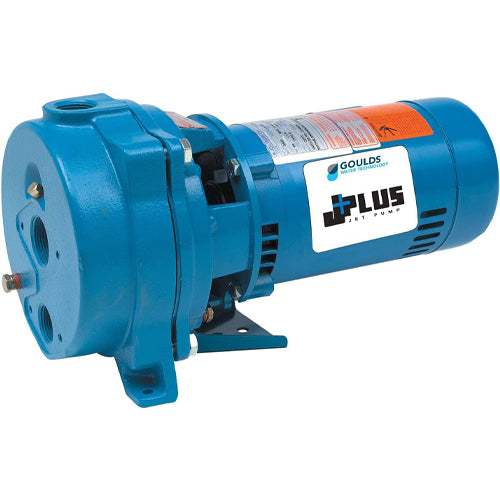

Goulds Pumps J5 Convertible Jet Pump (1/2 HP, 115/230 Volts, 1 Phase)
Goulds Pumps J5 Convertible Jet Pump (1/2 HP, 115/230 Volts, 1 Phase)
SKU:J5
Regular price
$779.58 USD
Regular price
$1,278.00 USD
Sale price
$779.58 USD
Unit price
/
per
Shipping calculated at checkout.
Don't see the price?
Don't see the price?
Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.
Couldn't load pickup availability
Goulds J5, Convertible Jet Pump, J+ Series, 1/2 HP, 115/230 Volts, 1 Phase, 1-1/4" NPT Suction, 1" NPT Discharge, Cast Iron Body
| Applications | |
| Homes; Cottages; Booster Service | |
| Features | |
| One Year Factory Warranty | |
| Compact: Design has an integral shallow well adapter built into the casing, which eliminates the need for a separate shallow well adapter. | |
| Serviceable: Back pullout design allows disassembly of pump for service without disturbing piping | |
| Impeller: F.D.A. compliant, glass filled No¬ryl® is corrosion and abrasion resistant. | |
| Diffuser (Guidevane): Diffuser has stainless wear ring for extended performance in abrasive conditions. | |
| Powered for Continuous Operation: Can be oper¬ated continuously without damage. | |
| Protected Mechanical Seal: Special dia¬phragm design retains water in the casing at all times to ensure the mechanical seal can never run dry. | |
| Excellent Air Handling Ability: After initial priming the pump has the ability to re-prime itself even when air gets into the system. | |
Tech Specs | |
Brand |
Goulds |
Model Number |
J5 |
Series |
J+ |
HP |
1/2 |
RPM |
3500 |
Voltage |
115/230 |
Phase |
Single |
Hertz |
60 |
Rotation |
Clockwise when viewed from motor |
Max Temperature |
140 |
Shaft |
Stainless Steel |
Notes |
Built-in overload with automatic reset |
Suction Pipe Connection (in) |
1-1/4" NPT |
Discharge Pipe Connection (in) |
1" NPT |
Impeller Material |
Glass filled noryl |
Thermal Protection |
Yes |
Maximum Temperature |
140°F |
Pressure Switch |
AS4 Preset (30-50 PSI) |
Venturi |
AD3332 |
Nozzle |
AN017 |
Type |
Convertible Jet Pump for Shallow Well or Deep Well |
Parts List |
|
Support Documents (pdf) | ||||
| Product Literature | ||||
