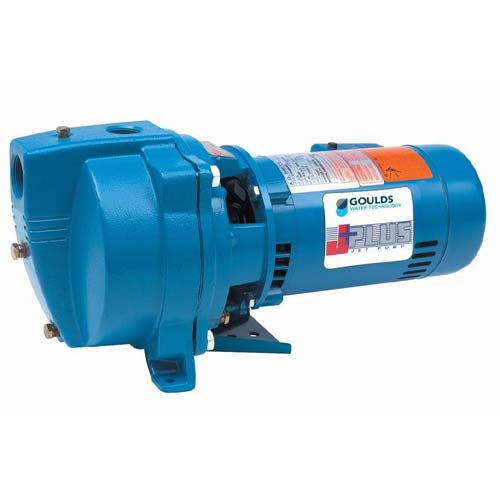

Goulds Pumps J15S Shallow Well Jet Pump (1-1/2 HP, 115/230 Volts, 1 Phase, 60hz, 1-1/4" Suction, 1" Discharge, JS+ Series)
Goulds Pumps J15S Shallow Well Jet Pump (1-1/2 HP, 115/230 Volts, 1 Phase, 60hz, 1-1/4" Suction, 1" Discharge, JS+ Series)
SKU:J15S
5.0 / 5.0
(1) 1 total reviews
Don't see the price?
Don't see the price?
Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.
Couldn't load pickup availability
| Applications | |
| Homes; Cottages; Booster Service | |
| Features | |
| One Year Factory Warranty | |
| Compact: Design has an integral shallow well adapter built into the casing, which eliminates the need for a separate shallow well adapter. | |
| Serviceable: Back pullout design allows disassembly of pump for service without disturbing piping | |
| Impeller: F.D.A. compliant, glass filled Noryl® is corrosion and abrasion resistant. | |
| Diffuser (Guidevane): Diffuser has stainless wear ring for extended performance in abrasive conditions. | |
| Powered for Continuous Operation: Can be oper¬ated continuously without damage. | |
| Protected Mechanical Seal: Special diaphragm design retains water in the casing at all times to ensure the mechanical seal can never run dry. | |
| Excellent Air Handling Ability: After initial priming the pump has the ability to re-prime itself even when air gets into the system. | |
Tech Specs | |
Brand |
Goulds |
Type |
Shallow Well Jet Pump |
Model Number |
J15S |
HP |
1-1/2 |
RPM |
3500 |
Voltage |
115/230 |
Phase |
Single |
Speed |
1500 RPM |
Hertz |
60 |
Rotation |
Clockwise when viewed from motor |
Max Temperature |
140 |
Shaft |
Stainless Steel |
Notes |
Built-in overload with automatic reset |
Suction Pipe Connection (in) |
1-1/4" NPT |
Discharge Pipe Connection (in) |
1" NPT |
Flow at 5 ft (30 psi) |
26.6 gpm |
Flow at 10 ft (30 psi) |
24.7 gpm |
Flow at 15 ft (30 psi) |
21.6 gpm |
Flow at 20 ft (30 psi) |
18.1 gpm |
Flow at 25 ft (30 psi) |
14 gpm |
Maximum Shut Off Pressure |
80 psi |
Pump Casing |
Cast iron |
Impeller Material |
Glass filled noryl |
Thermal Protection |
YES |
Maximum Temperature |
140°F |
Pump Length |
19-1/4" |
Pressure Switch |
AS4 Preset (30-50 PSI) |
Venturi |
AD3342 |
Nozzle |
AN022 |
Alternative Option (If not in stock) |
Sta-Rite Pump SNF Click Here |
Parts List |
|
Support Documents (pdf) | ||||
| Product Literature | ||||
Share
- Questions about this product? Contact our team!
- Product images may be generic.
Water is of extreme importance where I live and I will only buy the best pump available. I've bought 3 of these pumps. The first two were as a backup and main pump respectively for my whole house plus two apartment rainwater collection system. The 1st of the two pumps was installed in mid 2013. It ran every day for 11 years before the motor seized. I'm keeping the pump portion as additional backup should a pump fail. I then installed the backup of the two original pumps. It is doing just fine and I am optimistic of seeing another decade of service from it if not more. THIS current purchase is to be the new backup pump that I hope not to need for the next ten years. You just can't go wrong with Gould Jet pumps.
