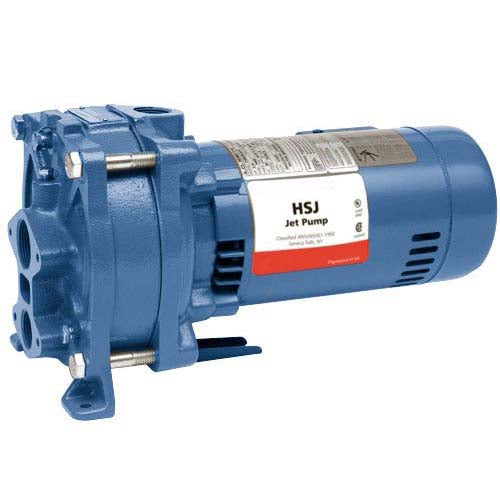

Goulds Pumps HSJ07N Horizontal Multi Stage Jet Pump (3/4 HP, 115/230 Volts, 1 Phase, Cast Iron Body)
Goulds Pumps HSJ07N Horizontal Multi Stage Jet Pump (3/4 HP, 115/230 Volts, 1 Phase, Cast Iron Body)
SKU:HSJ07N
Regular price
$1,142.40 USD
Regular price
$1,904.00 USD
Sale price
$1,142.40 USD
Unit price
/
per
Shipping calculated at checkout.
Don't see the price?
Don't see the price?
If the item's price is not displayed on this page, you might need to contact us for a quote or add the item to your cart to see the price.
Couldn't load pickup availability
| Applications | |
| Homes, Farms, Cottages, Booster Service | |
| Features | |
| High Capacity and Pressure | |
| Stainless Steel Pump Shaft | |
| Corrosion Resistant | |
| Easy to Service | |
| Powered for Continuous Operation | |
| Convertible - May be used on Shallow and Deep Well Applications | |
Tech Specs | |
Brand |
Goulds Pumps |
Product Type |
Convertible jet pump |
Application |
Shallow or deep well |
Model Number |
HSJ07N |
Brand |
Goulds Pumps |
HP |
0.75 |
Volts |
115/230 |
Speed |
3500 RPM |
Phase |
Single |
Stages |
2 |
Suction Connection |
1-1/4" NPT |
Discharge Connection |
1" NPT |
Drive (Pressure) Connection |
1" NPT |
GPM |
18.5 |
Hz |
60 |
Length |
15" |
Width |
8" |
Height |
9" |
Flow at 5 ft (30 psi) |
18.5 gpm |
Flow at 10 ft (30 psi) |
15.9 gpm |
Flow at 15 ft (30 psi) |
13.8 gpm |
Flow at 20 ft (30 psi) |
13.8 gpm |
Flow at 25 ft (30 psi) |
8.6 gpm |
Maximum Shut Off Pressure |
76 psi |
Impeller Material |
Glass filled thermoplastic |
Thermal Protection |
Yes |
Maximum Temperature |
140°F |
| Shallow Well Adapter | Not Included |
Notes |
See Goulds Literature |
Support Documents (pdf) | ||||
| Goulds Literature | ||||
