Goulds Pumps

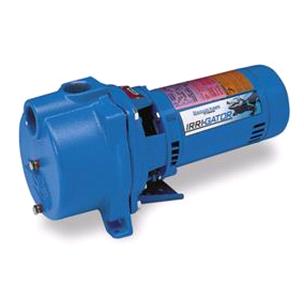

GT30 Goulds IRRI-GATOR Self-Priming Centrifugal Irrigation Pump (3 HP, 1 Phase, 60Hz, 3500 RPM, 230 Volt, 1 Phase, 110 Max GPM, 128' Max Head, 1-1/2" NPT Suction and Discharge)
GT30 Goulds IRRI-GATOR Self-Priming Centrifugal Irrigation Pump (3 HP, 1 Phase, 60Hz, 3500 RPM, 230 Volt, 1 Phase, 110 Max GPM, 128' Max Head, 1-1/2" NPT Suction and Discharge)
[COUNT] shoppers are looking at this right now
No reviews
SKU:GT30
Regular price
$1,932.60 USD
Regular price
$3,221.00 USD
Sale price
$1,932.60 USD
Shipping calculated at checkout.
Quantity
View Price in Cart
Couldn't load pickup availability
Goulds GT30 Centrifugal Well Pump (GT30, 3 HP, 105 Max GPM)
| Applications |
| Lawn Sprinkling, Irrigation, Air Conditioning Systems, Heat Pumps, Water Transfer and Dewatering |
| Features |
| One Year Factory Warranty |
| Self-Priming Design: Once pump is initially primed, filled with water, it will re-prime when the water level rises above the end of the suction pipe. |
| Serviceable: Back pullout design allows disassembly of pump for service without disturbing piping |
| Impeller: F.D.A. compliant, glass filled Noryl® is corrosion and abrasion resistant. |
| Diffuser (Guide vane): Diffuser has stainless wear ring for extended performance in abrasive conditions. |
| Powered for Continuous Operation: Can be operated continuously without damage. |
| Corrosion Resistant: Electro-coat paint process is applied inside and out, then baked on. |
| Mechanical Seal: Carbon/ceramic faces, BUNA elastomers. 300 series stainless steel metal parts. Pump design prevents the seal from running dry. |
|
Tech Specs |
|
|
Brand
|
Goulds
|
|
Model Number
|
GT30
|
|
Type
|
Irrigation Self Priming Centrifugal Pump
|
|
HP
|
3
|
|
RPM
|
3500
|
|
Voltage
|
230
|
|
Phase
|
Single
|
|
Hertz
|
60
|
|
Rotation
|
Clockwise when viewed from motor end
|
|
Max Temperature
|
140
|
|
Shaft
|
Stainless Steel
|
|
Notes
|
Built-in overload with automatic reset
|
|

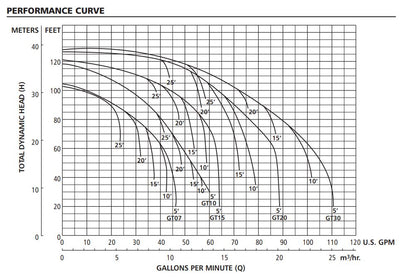

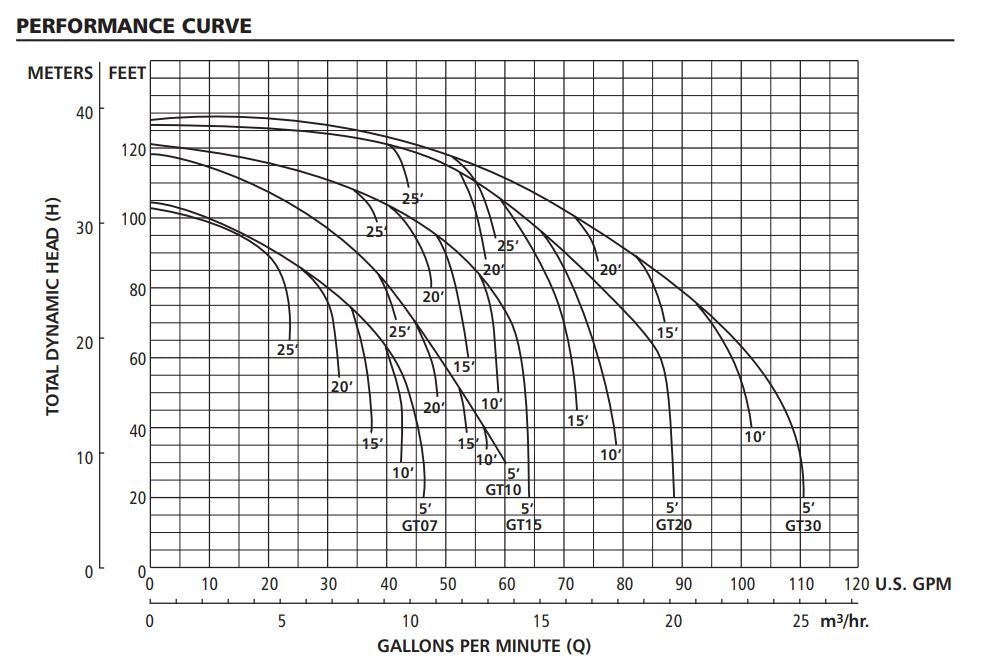

Flow at 5 ft (20 psi)
|
105 gpm
|
|
Flow at 10 ft (20 psi)
|
100 gpm
|
|
Flow at 15 ft (20 psi)
|
88 gpm
|
|
Flow at 20 ft (20 psi)
|
76 gpm
|
|
Flow at 25 ft (20 psi)
|
60 gpm
|
|
Impeller Material
|
Glass filled noryl
|
|
Maximum Flow
|
110 gpm
|
|
Maximum Head
|
128 Ft
|
|
Maximum Water Temperature
|
140°F
|
|
Thermal Protection
|
Yes
|
|
Suction Pipe Connection (in)
|
1-1/2" NPT
|
|
Discharge Pipe Connection (in)
|
1-1/2" NPT
|
|
Max Working Pressure (psig)
|
125
|
|
Length (in)
|
21-11/32
|
|
Similar Products
|
Sta-Rite DS2HHG-53L Click Here
|
|
Parts
|
See Below
|
|
Support Documents (pdf) |
||||
| Product Literature | ||||
