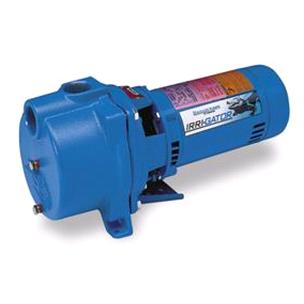

Goulds Pumps GT15 IRRI-GATOR Self-Priming Centrifugal Pump (1-1/2 HP, 1 Phase, 63 GPM, 115/230 Volt, 3500 RPM, 60 Hz, 1-1/2" Suction and Discharge, 125 Max PSI, Cast Iron,
Goulds Pumps GT15 IRRI-GATOR Self-Priming Centrifugal Pump (1-1/2 HP, 1 Phase, 63 GPM, 115/230 Volt, 3500 RPM, 60 Hz, 1-1/2" Suction and Discharge, 125 Max PSI, Cast Iron,
👁️
[COUNT] People are currently viewing this product.
No reviews
SKU:GT15
Regular price
$950.40 USD
Regular price
$1,584.00 USD
Sale price
$950.40 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Don't see the price?
Don't see the price?
If you are unable to find the price for this item on our page, please contact us directly for a quote.
Some products require you to ADD TO CART to see the price.
Tax
Tax
NY, NJ and CT will be charged tax on most orders.
Sales tax will need to be collected on all AMT and Jorc products, regardless of the destination state.
* If you are tax exempt and would like to place an order, email your tax exempt form to Sales@kgpowersystems.com.
** Taxes may be applied after an order is placed.
Goulds GT15 Centrifugal Well Pump (GT15, 1-1/2 HP, 63 Max GPM)
| Applications |
| Lawn Sprinkling, Irrigation, Air Conditioning Systems, Heat Pumps, Water Transfer and Dewatering |
| Features |
| One Year Factory Warranty |
| Self-Priming Design: Once pump is initially primed, filled with water, it will re-prime when the water level rises above the end of the suction pipe. |
| Serviceable: Back pullout design allows disassembly of pump for service without disturbing piping |
| Impeller: F.D.A. compliant, glass filled Noryl® is corrosion and abrasion resistant. |
| Diffuser (Guide vane): Diffuser has stainless wear ring for extended performance in abrasive conditions. |
| Powered for Continuous Operation: Can be operated continuously without damage. |
| Corrosion Resistant: Electro-coat paint process is applied inside and out, then baked on. |
| Mechanical Seal: Carbon/ceramic faces, BUNA elastomers. 300 series stainless steel metal parts. Pump design prevents the seal from running dry. |
|
Tech Specs |
|
|
Brand
|
Goulds
|
|
Model Number
|
GT15
|
| Type |
Irrigation Centrifugal Self-Priming Pump
|
|
HP
|
1-1/2
|
|
RPM
|
3500
|
|
Voltage
|
115/230
|
|
Phase
|
Single
|
|
Hertz
|
60
|
|
Rotation
|
Clockwise when viewed from motor end
|
|
Max Temperature
|
140
|
|
Shaft
|
Stainless Steel
|
|
Notes
|
Built-in overload with automatic reset
|
|
Suction Pipe Connection (in)
|
1-1/2" NPT
|
|
Discharge Pipe Connection (in)
|
1-1/2" NPT
|
|
Flow at 5 ft (20 psi)
|
63 gpm
|
|
Flow at 10 ft (20 psi)
|
59 gpm
|
|
Flow at 15 ft (20 psi)
|
54 gpm
|
|
Flow at 20 ft (20 psi)
|
49 gpm
|
|
Flow at 25 ft (20 psi)
|
39 gpm
|
|
Max Working Pressure (psig)
|
125
|
|
Pump Casing
|
Cast iron
|
|
Impeller Material
|
Glass Filled Noryl |
|
Maximum Flow
|
64 gpm
|
|
Maximum Head
|
121 ft
|
|
Maximum Water Temperature
|
140°F
|
|
Thermal Protection
|
Yes
|
|
Length (in)
|
21 3/16"
|
|
*Similar Item
|
Sta-Rite DS2HF-192PL Click Here
|
|
Parts
|
See Below
|
|
Support Documents (pdf) |
||||
| Product Literature | ||||
