Goulds Pumps
Goulds GT10 IRRI-GATOR Self-Priming Centrifugal Pump (1 HP, 1 Phase, 53 GPM)
Goulds GT10 IRRI-GATOR Self-Priming Centrifugal Pump (1 HP, 1 Phase, 53 GPM)
[COUNT] shoppers are looking at this right now
No reviews
SKU:GT10
Regular price
$879.00 USD
Regular price
$1,465.00 USD
Sale price
$879.00 USD
Shipping calculated at checkout.
Quantity
View Price in Cart
Couldn't load pickup availability
Goulds GT10 Centrifugal Well Pump (GT10, 1 HP, 53 Max GPM)
| Applications |
| Lawn Sprinkling, Irrigation, Air Conditioning Systems, Heat Pumps, Water Transfer and Dewatering |
| Features |
| One Year Factory Warranty |
| Self-Priming Design: Once pump is initially primed, filled with water, it will reprime when the water level rises above the end of the suction pipe. |
| Serviceable: Back pullout design allows disassembly of pump for service without disturbing piping |
| Impeller: F.D.A. compliant, is corrosion and abrasion resistant. |
| Diffuser (Guidevane): Diffuser has stainless wear ring for extended performance in abrasive conditions. |
| Powered for Continuous Operation: Can be oper¬ated continuously without damage. |
| Corrosion Resistant: Electro-coat paint process is applied inside and out, then baked on. |
| Mechanical Seal: Carbon/ceramic faces, BUNA elastomers. 300 series stainless steel metal parts. Pump design prevents the seal from running dry. |
|
Tech Specs |
|
|
Brand
|
Goulds
|
|
Model Number
|
GT10
|
|
Series
|
GT Irri-gator
|
| Type |
Irrigation Self Priming Pump
|
|
HP
|
1
|
|
RPM
|
3500
|
|
Voltage
|
115/230
|
|
Phase
|
Single
|
|
Hertz
|
60
|
|
Rotation
|
Clockwise when viewed from motor end
|
|
Max Temperature
|
140
|
|
Shaft
|
Stainless Steel
|
|
Notes
|
Built-in overload with automatic reset
|
|
Suction Pipe Connection (in)
|
1-1/2" NPT
|
|
Discharge Pipe Connection (in)
|
1-1/2" NPT
|
|

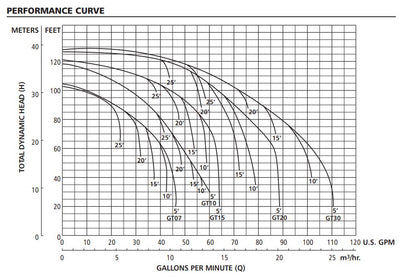

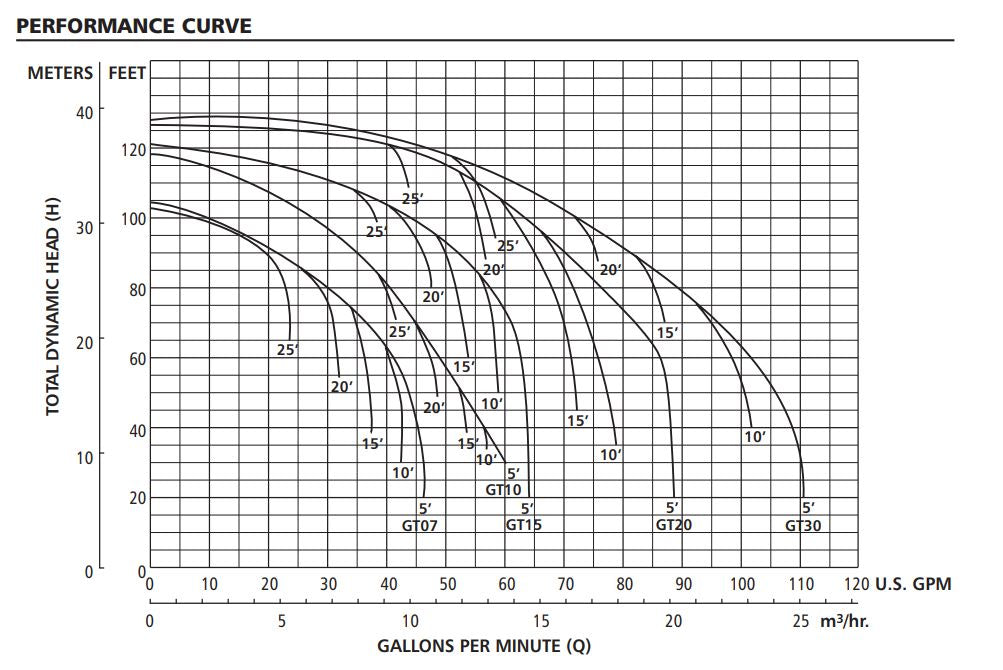

Flow at 5 ft (20 psi)
|
53 gpm
|
|
Flow at 10 ft (20 psi)
|
51 gpm
|
|
Flow at 15 ft (20 psi)
|
49 gpm
|
|
Flow at 20 ft (20 psi)
|
46 gpm
|
|
Flow at 25 ft (20 psi)
|
41 gpm
|
|
Pump Casing
|
Cast Iron
|
|
Impeller Material
|
Glass Fulled Noryl
|
|
Maximum Flow
|
60 gpm
|
|
Maximum Gead
|
118 Ft
|
|
Maximum Water Temperature
|
140°F
|
|
Thermal Protection
|
Yes
|
|
Max Working Pressure (psig)
|
125
|
|
Length (in)
|
19 7/8
|
|
*Similiar Items
|
Sta-Rite DS2HE-191PL Click Here
|
|
Parts
|
See Below |
|
Support Documents (pdf) |
||||
| Product Literature | ||||
