Goulds Pumps

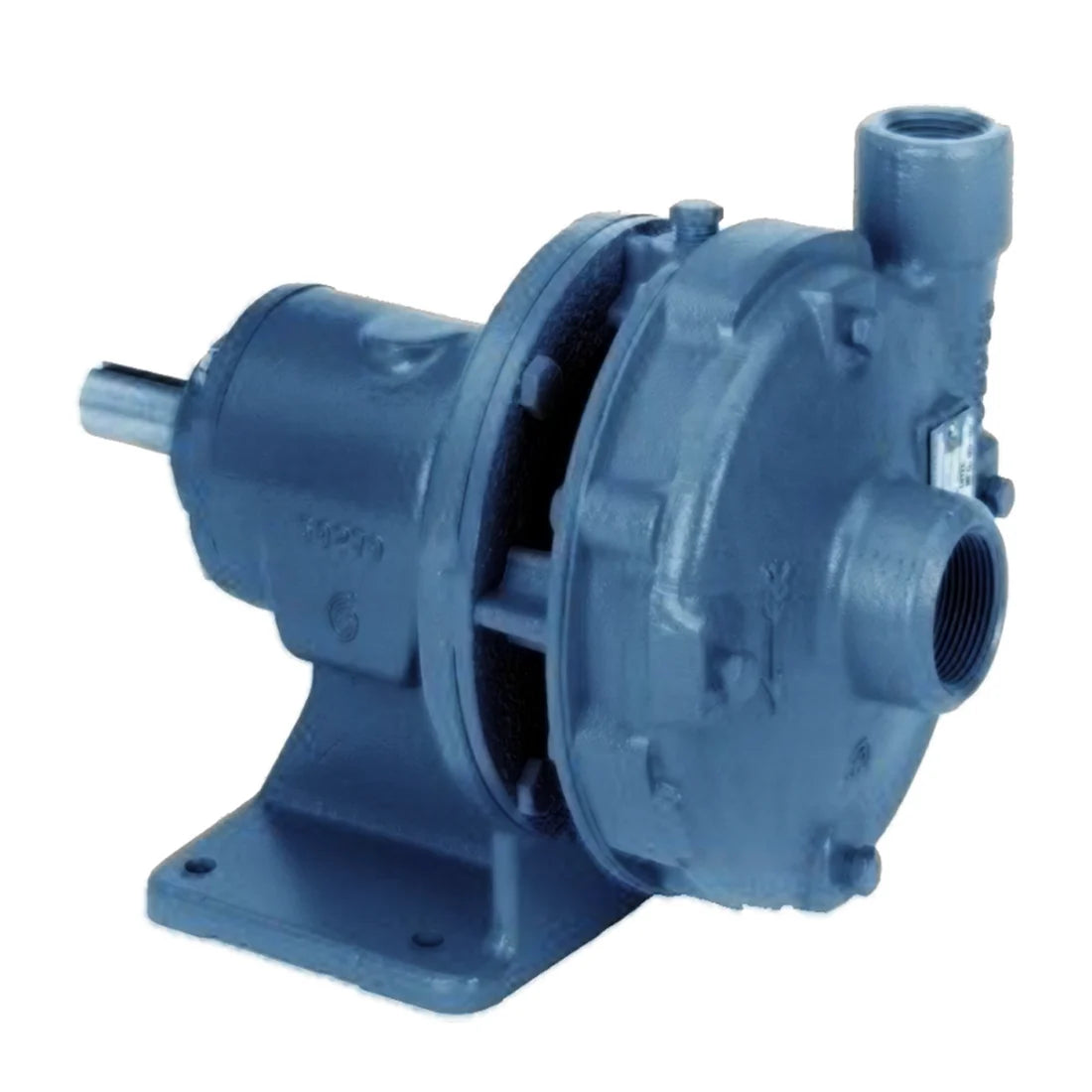

F1BF10 Goulds 3742 Series Centrifugal Frame Mounted Pump (1 HP, 1.25" Suction, 1" Discharge, Motor not included)

F1BF10 Goulds 3742 Series Centrifugal Frame Mounted Pump (1 HP, 1.25" Suction, 1" Discharge, Motor not included)

[COUNT] shoppers are looking at this right now

F1BF10

$3,737.40 USD
$6,229.00 USD $3,737.40 USD
Sale Sold out
Shipping calculated at checkout.

View Price in Cart
Goulds F1BF10, Frame Mounted Pumps Type, 3742 Series, 1 HP, Bronze Fitted Construction, 1.25 Suction, 1 Discharge,
Applications
Residential, Commercial to 3 HP Frame-Mounted Centrifugal Pumps G&L Series 3742. General applications traditionally requiring various materials such as all iron, bronze-fitted or all bronze construction. Applications include water circulation; booster service; liquid transfer; spray systems; jockey pumps; OEM applications; and general water services
Features
Construction: Available in bronze-fitted (BF), all iron (AI), or all bronze (AB). Bronze-fitted means bronze impeller. Frame-Mounted Design: Flexibility of installation and driver arrangements.
Back Pull-Out Design: Simplifies maintenance when used with spacer type coupling.
Cast Iron Power Frame: Rigidly supported, grease-for-life ball bearing assembly.
Impeller: Enclosed design for high efficiencies. Threaded directly on pump shaft.
Stainless steel locknut on three phase models. Requires no clearance adjustments. Balanced for smooth operation.
Mechanical Seal: Standard John Crane Type 6 with carbon versus ceramic faces, BUNA elastomers, and 18-8 stainless metal parts. Optional high temperature and chemical duty seals available.
Motors: NEMA standard open drip-proof, totally enclosed fan cooled or explosion proof enclosures. Rugged ball bearing design for continuous duty under all operating conditions.

Specifications

Brand
Goulds
Catalog Number
F1BF10
Type
Frame Mounted Pumps
Series
3742
HP
1
Impeller Dia. (in.)
4 9/16
Construction
Bronze Fitted
Max. BHP @ 3500 RPM
1.2
Pump Size
1 x 1 1/4 - 5
Suction
1.25
Discharge
1
