Goulds Pumps

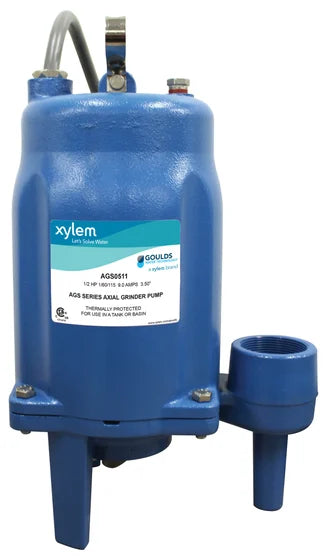

Goulds AGS0511 Axial Grinder Pump (1/2 HP, 1 Phase, 115 Volts, Manual Operation, 2" NPT Discharge, 46 GPM, 42' Max Head, 20' Cord)
Goulds AGS0511 Axial Grinder Pump (1/2 HP, 1 Phase, 115 Volts, Manual Operation, 2" NPT Discharge, 46 GPM, 42' Max Head, 20' Cord)
SKU:AGS0511
View Price in Cart
Couldn't load pickup availability
Goulds Pumps AGS0511, Axial Grinder Pumps Type, AGS Series, 0.5 HP, 1 Phase, 115 Volts, Manual Operation, 9 Maximum Amps, 2" Discharge Size, 20' Power Cord Size,
| Applications | |
|
The AGS Series grinder pumps feature axial grinder and semi-open impeller technology to easily slice through the solids, flushables and trash found in the modern wastewater stream without roping or clogging. The powerful semi-open impeller and axial grinder reduce waste to a fine slurry to minimize downtime and service issues. AGS Series pumps offer solutions for a range of residential and light commercial applications and are an ideal replacement for 2" discharge sewage pumps. APPLICATIONS: Designed for residential sewage applications where a gravity system is not practical. Ideal for pressure sewage systems. |
|
| Features | |
| Design: Capable of grinding domestic sewage in the modern wastewater stream. | |
| Cutter System: Stainless steel, axial lobe-cutter design with 8-hole cutting plate, capable of 4.9 million bites per hour and TDH up to 66 feet. | |
| Impeller: Cast Iron semi open 2 vane impeller. | |
| Casing: Cast iron, volute type for high efficiency. Adaptable for guide rail system. | |
| Motor: Fully submerged in oil-filled chamber. High grade turbine oil surrounds motor for more efficient heat dissipation, permanent lubrication of bearings and mechanical seal, and protection against outside environment. | |
| Motor Shaft: 300 series stainless steel. | |
| Designed for Continuous Operation: Pump ratings are within the motor manufacturer's recommended working limits, can be operated continuously without damage when fully submerged | |
| Capacities: to 53 gpm | |
| Total heads: to 66' TDH | |
| Single mechanical seal: silicon carbide rotary/silicon carbide stationary, 300 series stainless steel metal parts, BUNA-N elastomers | |
| Fasteners: 300 series stainless steel | |
|
Specifications |
|
|
Brand
|
Goulds Pumps
|
|
Catalog Number
|
AGS0511
|
|
Type
|
Axial Grinder Pumps
|
|
Series
|
AGS
|
|
HP
|
0.5
|
|
Phase
|
1
|
|
Volts
|
115
|
|
RPM
|
3500
|
|
Operation
|
Manual
|
|
Maximum Amps
|
9
|
|
Discharge Size
|
2"
|
|
Impeller Diameter
|
3.5"
|
|
Power Cord Size
|
20'
|
|
Notes
|
See Support Documents
|
|
