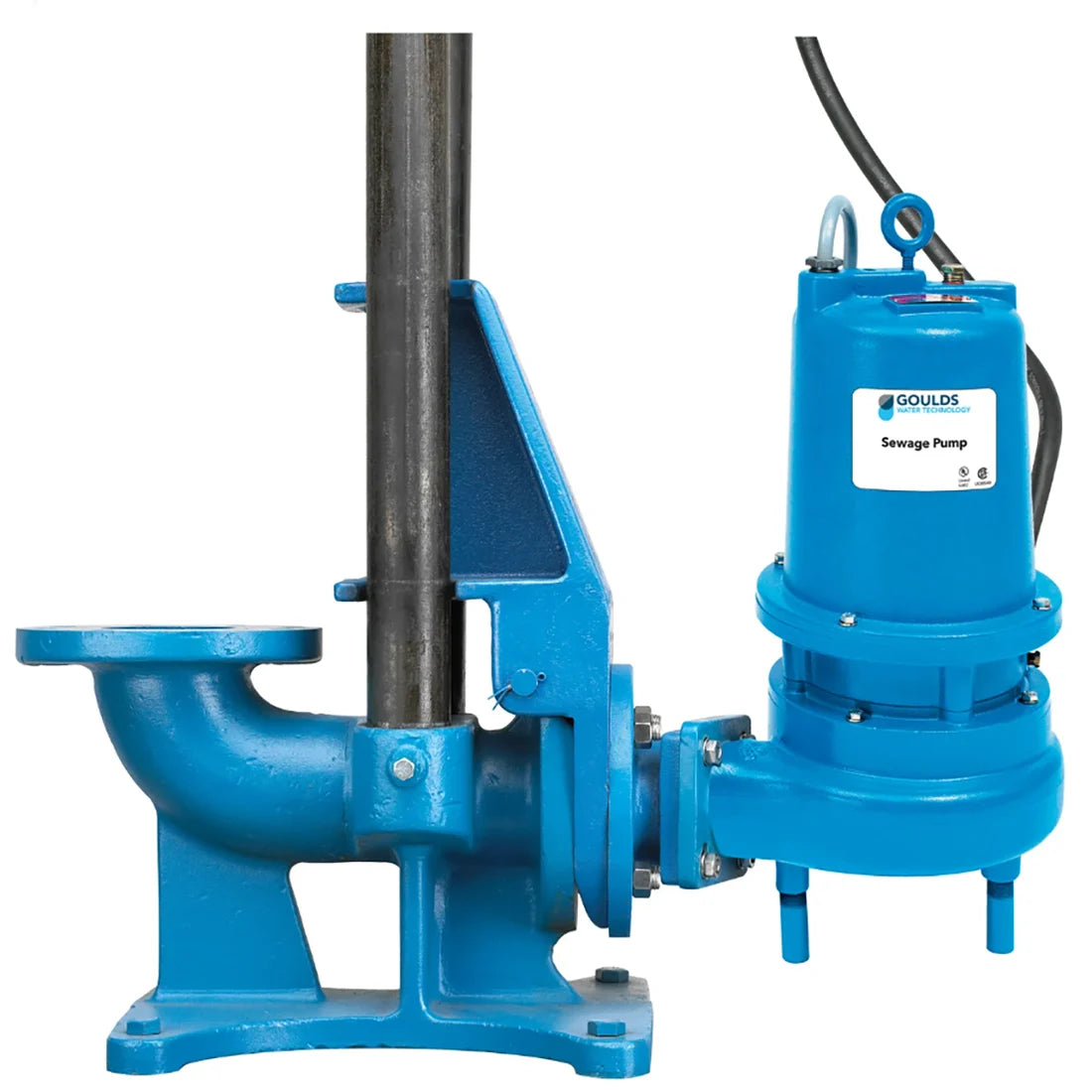

A10-40 Goulds 4 X 4 inch Rail System for Effluent and Sewage Pumps (4" Pump Discharge, 4" ANSI Flanged Discharge Size)

A10-40 Goulds 4 X 4 inch Rail System for Effluent and Sewage Pumps (4" Pump Discharge, 4" ANSI Flanged Discharge Size)

[COUNT] shoppers are looking at this right now

A10-40

$2,998.10 USD
$3,669.00 USD $2,998.10 USD
Sale Sold out
Shipping calculated at checkout.

View Price in Cart

Goulds A10-40, 4 X 4 inch Rail System Type, 4 inch Pump Discharge

* Pump is NOT included.

Applications
Guide Rail Systems for Effluent and Sewage Pumps
Features
A10-30, 3 X 4 inch RAIL SYSTEM: Connects to any pump with a 3 inch, 150# ANSI flanged discharge. Outlet is a 4 inch flanged discharge.
A10-40, 4 X 4 inch RAIL SYSTEM: Connects to any pump with a 4 inch, 150# ANSI flanged discharge. Outlet is a 4 inch flanged discharge.
A10-60, 4 X 6 inch RAIL SYSTEM: Connects to any pump with a 4 inch, 150# ANSI flanged discharge. Outlet is a 6 inch flanged discharge.
Cast iron construction for standard applications.
Optional bronze pump adapter for applications requiring a non-sparking disconnect. Standard kit contains a Base, a Pump Adapter with all required bolts and fittings and the Upper Guide Rail Positioning Bracket.
Optional intermediate guide rail brackets are available in either steel or brass for non-sparking applications. Guide rails are not supplied they may be sourced locally - 2 inch stainless steel guide rails recommended.
Spare pump adapter kits are available for those who want a back-up pump/adapter ready for an emergency quick change.
* See Support Documents below for additional information

Specifications

Brand
Goulds
Catalog Number
A10-40
Type
4 X 4 inch Rail System
inch Pump Discharge)
4
Flanged Discharge (in)
4
Pump
Not Included
Notes
See Support Documents



Support Documents (pdf)
