Goulds Pumps

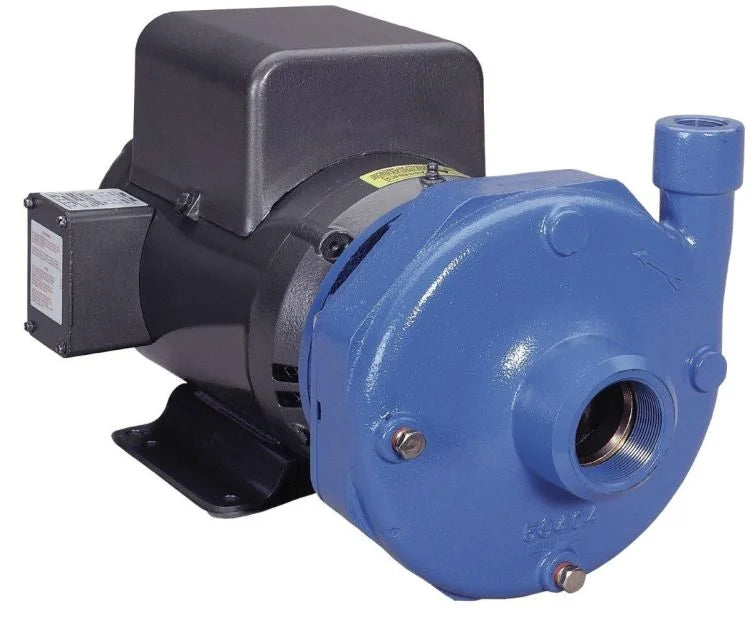

5BF1L9C0 Goulds 3656 S Group Series Close Coupled Centrifugal Pump (10 HP, Three Phase, 208-230/460 Volt, 3500 RPM, Bronze Fitted, TEPE Enclosure)

5BF1L9C0 Goulds 3656 S Group Series Close Coupled Centrifugal Pump (10 HP, Three Phase, 208-230/460 Volt, 3500 RPM, Bronze Fitted, TEPE Enclosure)

[COUNT] shoppers are looking at this right now

5BF1L9C0

$4,691.40 USD
$7,819.00 USD $4,691.40 USD
Sale Sold out
Shipping calculated at checkout.

View Price in Cart

Goulds 5BF1L9C0, Close Coupled Centrifugal Pump Type, 3656 S Group Series, 10 HP, Three Phase, 208-230/460 Voltage, 1.15 SF, TEPE Enclosure,

Applications
Residential, Commercial Cast Iron, Bronze Fitted Centrifugal Pumps G&L Series 3656/3756 S Group. Applications: Booster service, Spraying systems, Irrigation, Water circulation, Liquid transfer, General purpose pumping.
Features
The 3656 and 3756 S-Group pumps from Goulds Water Technology have been designed with technical benefits to meet the needs of users in a variety of water supply, recirculation, and cooling applications.
The model 3656 offers close coupled design for space saving and simplified maintenance.
The model 3756 offers a bearing frame mounted design for flexibility of installation and drive arrangements.
Back pull-out to reduce maintenance down time.
Standard Type 21 mechanical seal for both reliability and availability. Carbon/ceramic/ BUNA standard, with other faces and elastomers available.
3656/3756 available in all iron, bronze fitted or all bronze construction for application versatility.
Replaceable wearing components include stainless steel shaft sleeve and casing and hub wear rings to maintain peak efficiency.
Packed box sealing is also available as an option.
Enclosed impeller design, dynamic balancing and renewable wear rings reduce losses affecting performance and pump life.
Suction and discharge pipe connections are NPT threaded, except 3 x 4 7 which has 125 lb. ANSI flat faced flanges.
Rigid cast iron motor adapter provides support and registered fits maintain positive unit alignment.

Specifications

Brand
Goulds
Catalog Number
5BF1L9C0
Type
Close Coupled Centrifugal Pump
Series
3656 S Group
HP
10
Phase
Three
Voltage
208-230/460
SF
1.15
RPM
3500
Construction Material
Bronze Fitted
Pump size
1 1/2 x 2 - 8
Enclosure
TEPE
Impeller Dia. (in.)
6-3/4
Notes
See Support Documents



Support Documents (pdf)
