Goulds Pumps

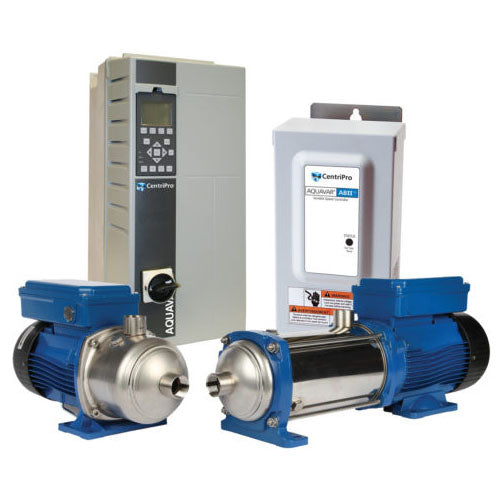

Goulds Pumps 5AVN310HM04 Aquavar e-ABII Booster System (4 HP/ 5 HP, 1.5" Suction, 230 V, Single Phase, e-HM Booster Pump, Aquavar IPC Controller)
Goulds Pumps 5AVN310HM04 Aquavar e-ABII Booster System (4 HP/ 5 HP, 1.5" Suction, 230 V, Single Phase, e-HM Booster Pump, Aquavar IPC Controller)
No reviews
SKU:5AVN310HM04
Regular price
$4,524.71 USD
Regular price
$7,835.00 USD
Sale price
$4,524.71 USD
Unit price
/
per
Shipping calculated at checkout.
Don't see the price?
Don't see the price?
Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.
Couldn't load pickup availability
Goulds 5AVN310HM04, Constant Pressure Booster System with Pump Controller and Tank Type, Aquavar e-ABII Series, 5 HP, 1.5" Suction (NPT), 230 V, Single Phase, e-HM Booster Pump,Aquavar IPC Outdoor Speed Controller,
| Applications | |
| The e-AB2 variable speed pump controller and complete booster package kits, provide an economical answer for municipal water district customers with low water pressure. Both domestic and light commercial applications can benefit. As water use increases, the controller changes pump speed to maintain pressure. Large supply tanks are eliminated and less wear and tear on your pump and motor. Think of it as Cruise Control for your pump! The e-AB2 is available with a range of flow rates to handle homes with up to four baths, irrigation, filtration and fire suppression systems. Light commercial applications up to 100 GPM at 55 PSI boost. The e-AB2 is available as either a separate controller or as part of a complete pump package with everything you need to plumb it to a domestic water line. | |
| Features | |
| 1 HP thru 5 HP - Pressure Booster Packages | |
| 1AB2 and 2AB2 Prewired Pump/Controller Kits | |
| Programmed to motor electrical characteristics; just select set pressure. | |
| Application specific Start-Up Genie guides you through quick and easy commissioning | |
| Removable, graphical control panel with display | |
| Alarm Log records the last 5 alarms | |
| Hand on, Auto on, and Off buttons for easy pump operation at the keypad No toggling between local and remote operation! | |
| Capable of controlling up to 2 fixed speed pumps, with one standard drive | |
| Duplex variable speed pumping control with auto lead/lag and alternate | |
| **All pumps are equipped with three-phase motors** | |
| All controllers output three-phase, 230 Volt power | |
Specifications | |
Brand |
Goulds |
Catalog Number |
5AVN310HM04 |
Type |
Constant Pressure Booster System with Pump Controller |
Series |
Aquavar e-ABII |
HP |
4 HP Pump and Motor / 5 HP Controller |
Suction (NPT) |
1.5" |
Discharge (NPT) |
1.25" |
Voltage |
230 |
Phase |
Single |
Booster Pump |
e-HM |
Tank |
Not Included |
Outdoor Speed Controller |
Aquavar IPC |
Nema Rating |
3R |
Stages |
4 |
Transducer |
Included |
