Goulds Pumps

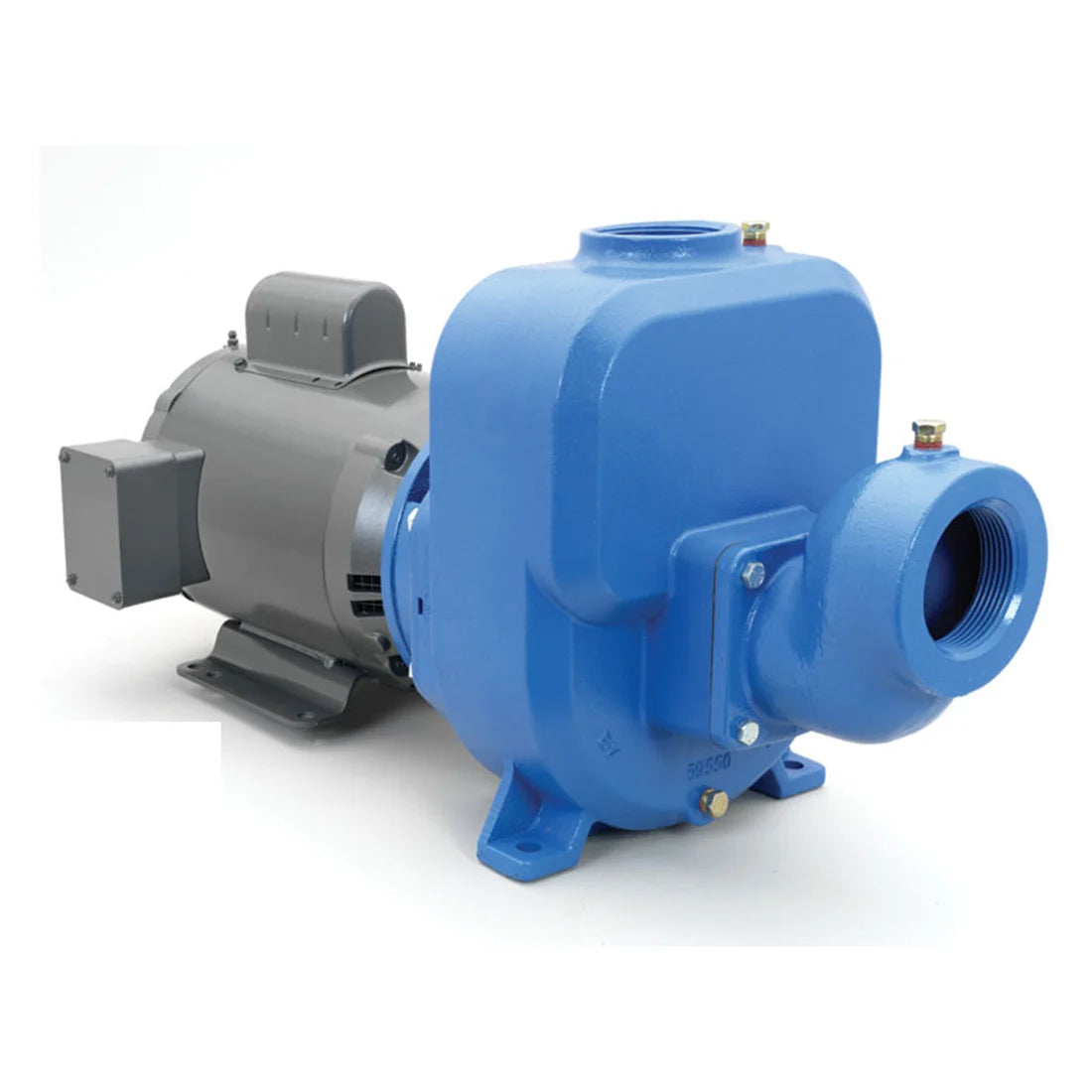

50SPH10 Goulds PrimeLine SP Series High Head Self-Priming Centrifugal Pump (5 HP, 1 Phase, ODP Enclosure, 230 Voltage, 60 Hz, 2-1/2" Suction, 2" Discharge, Cast Iron)
50SPH10 Goulds PrimeLine SP Series High Head Self-Priming Centrifugal Pump (5 HP, 1 Phase, ODP Enclosure, 230 Voltage, 60 Hz, 2-1/2" Suction, 2" Discharge, Cast Iron)
[COUNT] shoppers are looking at this right now
No reviews
SKU:50SPH10
Regular price
$3,066.00 USD
Regular price
$5,110.00 USD
Sale price
$3,066.00 USD
Shipping calculated at checkout.
Quantity
View Price in Cart
Couldn't load pickup availability
Goulds 50SPH10, High Head Self-Priming Centrifugal Pumps Type, SPM & SPH Series, 5 HP, 1 Phase, ODP Enclosure, 230 Voltage, 60 Hz,
| Applications |
| Goulds Self-Priming Centrifugal Pumps Prime Line SP, SPM & SPH Series. For use in: Lawn irrigation, Dewatering, Liquid transfer, Plot irrigation, Livestock watering |
| Features |
| Self-Priming Design: Features a replaceable check valve which acts to retain sufficient liquid in the casing to assure fast, reliable priming and repriming capabilities. Once initially primed the pump will reprime automatically should suction be lost. |
| Impeller and Wear Ring: Silicon Bronze construction, replaceable wear rings extend pump life, designed for maximum efficiency and repriming capabilities. Impeller is enclosed type, balanced for smooth operation, keyed to motor shaft. |
| Casing and Diffuser: Cast iron construction, featuring a back pull-out design with tapped connections provided for casing fill and drain to simplify pump start up and removal at the end of the season. |
| Shaft Sleeve: 300 series stainless steel replaceable sleeve provides motor shaft protection. |
| Mechanical Seal: Carbon/Ceramic faces, BUNA elastomers, 300 series stainless steel metal parts. |
| * Premium efficiency where required by Department of Energy regulations. |
| SPS83 Suction Strainer is Sold Separately. |
| Suction Flange Sold Separately (Part # SPF25 or SPF30 ) |
|
Specifications |
|
|
Brand
|
Goulds
|
|
Catalog Number
|
50SPH10
|
|
Type
|
High Head Self-Priming Centrifugal Pumps
|
|
Series
|
SPH
|
|
HP
|
5
|
|
Phase
|
1
|
|
Enclosure
|
ODP
|
|
Voltage
|
230
|
|
Hz
|
60
|
|
Suction
|
2-1/2" |
|
Discharge
|
2"
|
|
Design
|
Self Priming / End Suction
|
|
Motor
|
NEMA Standard
|
|
Suction Flange
|
SPF25 or SPF30 (Not Included)
|
