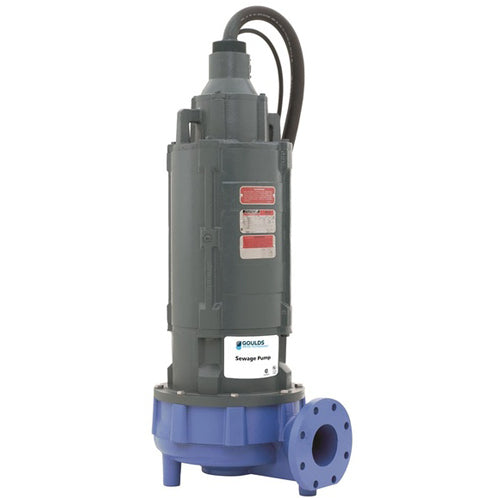

• Goulds Pumps 4XD13K4DC , 4" Non-Clog Sewage Pump, Explosion Proof (7.5 HP, 3 Phase, 230 Volts, 10.12 Impeller Dia.)
1 1

Goulds Pumps

Goulds Pumps 4XD13K4DC , 4" Non-Clog Sewage Pump, Explosion Proof (7.5 HP, 3 Phase, 230 Volts, 10.12 Impeller Dia.)

Goulds Pumps 4XD13K4DC , 4" Non-Clog Sewage Pump, Explosion Proof (7.5 HP, 3 Phase, 230 Volts, 10.12 Impeller Dia.)

4XD13K4DC

$18,488.57 USD
$28,642.00 USD $18,488.57 USD
Sale Sold out
Shipping calculated at checkout.

Don't see the price?

If the item's price is not displayed on this page, you might need to contact us for a quote or add the item to your cart to see the price.
4XD13K4DC Goulds 4" Non-Clog Sewage Pump, Explosion Proof (7.5 HP, 3 Phase, 230 Volts, 10.12 Impeller Dia.)
Applications
Sewage Systems, Flood & Pollution Control, Industrial Dewatering, Waste Water Treatment Plants, Municipal & Subdivision Lift Stations
Features
Cast iron, two vane closed design impeller for high efficiency and maximum wear life
Replaceable bronze wear ring to renew the running clearances and efficiencies to original conditions
Dual Mechanical Seals
Seal Sensor Probe

Specifications

Brand
Goulds
Catalog Number
4XD13K4DC
Pump Type
4" Non-Clog Explosion Proof Sewage Pump
Series
4XD Non-Clog Sewage Pump, Explosion Proof
HP
7.5
Phase
3
Volts
230
RPM
1150
Impeller Dia.
10.12
Impeller Code
D
Discharge Size (in.)
4 Inch
S.F. Amps
26.4
Service Factor
1.15
Full Load Amps
23
Locked Rotor Amps
114.4
Power Cable Size
10/4
Sensor Cable Size
18/5
Frame Size
210TY
Weight (lbs.)
455
Warranty
1 Year
Notes & Pump Curve
See Support Documents
