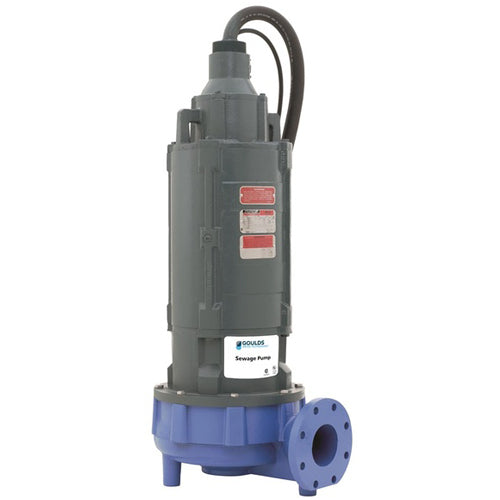

4XD12Q5BC Goulds 4" Non-Clog Sewage Pump, Explosion Proof (30 HP, 3 Phase, 575 Volts, 10.75 Impeller Dia.)
Applications
Sewage Systems, Flood & Pollution Control, Industrial Dewatering, Waste Water Treatment Plants, Municipal & Subdivision Lift Stations
Features
Cast iron, two vane closed design impeller for high efficiency and maximum wear life
Replaceable bronze wear ring to renew the running clearances and efficiencies to original conditions
Dual Mechanical Seals
Seal Sensor Probe

Specifications

Brand
Goulds
Catalog Number
4XD12Q5BC
Pump Type
4" Non-Clog Explosion Proof Sewage Pump
Series
4XD Non-Clog Sewage Pump, Explosion Proof
HP
30
Phase
3
Volts
575
RPM
1750
Impeller Dia.
10.75
Impeller Code
B
Discharge Size (in.)
4 Inch
S.F. Amps
35.8
Service Factor
1.15
Full Load Amps
31.2
Locked Rotor Amps
164
Power Cable Size
8/4
Sensor Cable Size
18/5
Frame Size
250TYS
Weight (lbs.)
890
Warranty
1 Year
Notes & Pump Curve
See Support Documents
