• Goulds Pumps 4XD12M4GC , 4" Non-Clog Sewage Pump, Explosion Proof (15 HP, 3 Phase, 460 Volts, 9.00 Impeller Dia.)
1 1

Goulds Pumps

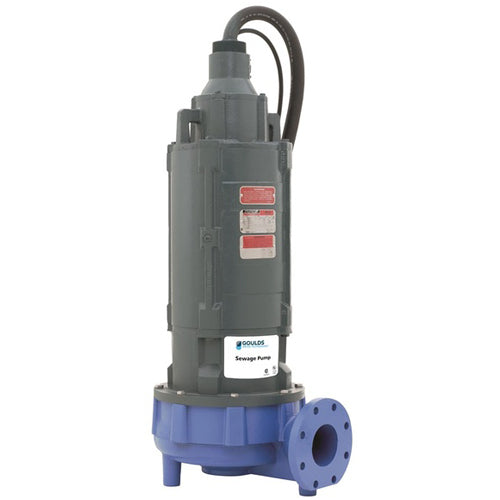

Goulds 4XD12M4GC , 4" Non-Clog Sewage Pump, Explosion Proof (15 HP, 3 Phase, 460 Volts, 9.00 Impeller Dia.)

Goulds 4XD12M4GC , 4" Non-Clog Sewage Pump, Explosion Proof (15 HP, 3 Phase, 460 Volts, 9.00 Impeller Dia.)

[COUNT] shoppers are looking at this right now

4XD12M4GC

$0.00 USD
$0.00 USD $0.00 USD
Sale Sold out
Shipping calculated at checkout.

View Price in Cart
4XD12M4GC Goulds 4" Non-Clog Sewage Pump, Explosion Proof (15 HP, 3 Phase, 460 Volts, 9.00 Impeller Dia.)

Applications
Sewage Systems, Flood & Pollution Control, Industrial Dewatering, Waste Water Treatment Plants, Municipal & Subdivision Lift Stations
Features
Cast iron, two vane closed design impeller for high efficiency and maximum wear life
Replaceable bronze wear ring to renew the running clearances and efficiencies to original conditions
Dual Mechanical Seals
Seal Sensor Probe

Specifications

Brand
Goulds
Catalog Number
4XD12M4GC
Pump Type
4" Non-Clog Explosion Proof Sewage Pump
Series
4XD Non-Clog Sewage Pump, Explosion Proof
HP
15
Phase
3
Volts
460
RPM
1750
Impeller Dia.
9.00
Impeller Code
G
Discharge Size (in.)
4 Inch
S.F. Amps
23.9
Service Factor
1.15
Full Load Amps
21
Locked Rotor Amps
111
Power Cable Size
8/4
Sensor Cable Size
18/5
Frame Size
210TY
Weight (lbs.)
455
Warranty
1 Year
Notes & Pump Curve
See Support Documents
