Goulds Pumps

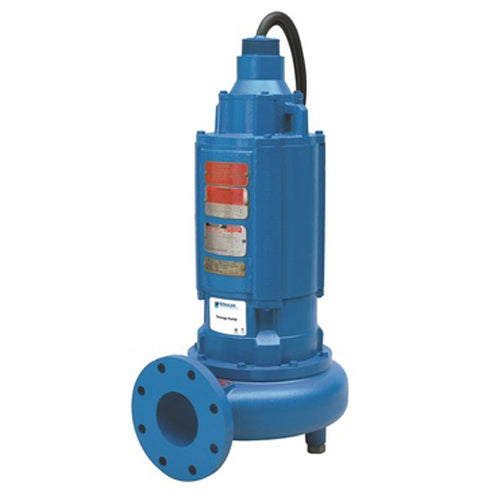

Goulds 4SDX12K5GC , 4" Sewage Pump, Explosion Proof (7-1/2 HP, 3 Phase, 575 Volts, 7.69" Impeller Dia.)
Goulds 4SDX12K5GC , 4" Sewage Pump, Explosion Proof (7-1/2 HP, 3 Phase, 575 Volts, 7.69" Impeller Dia.)
[COUNT] shoppers are looking at this right now
No reviews
SKU:4SDX12K5GC
Regular price
$13,945.80 USD
Regular price
$23,243.00 USD
Sale price
$13,945.80 USD
Shipping calculated at checkout.
Quantity
View Price in Cart
Couldn't load pickup availability
4SDX12K5GC Goulds 4" Sewage Pump, Explosion Proof (7-1/2 HP, 3 Phase, 575 Volts, 7.69" Impeller Dia.)
| Applications | |
| Hazardous Commercial and Industrial Applications, Sewage Systems, Flood & Pollution Control, Dewatering/Effluent, Farms, Hospitals, Trailer Courts, Motels | |
| Features | |
| Cast iron, ASTM A48, Class 30, two vane semi-open not-clog design impeller with pump out vanes for mechanical seal protection | |
| Heavy duty gray cast iron, ASTM A48, Class 30 Volute type casing with 4?, 125#, flanged, horizontal discharge conforming to ANSI standards | |
| Tandem mechanical seal system in an oil filled seal chamber. Each seal operates indepentently to ensure fail safe performance | |
| Explosion Proof Motor for use in hazardous locations. Rated Class 1, Groups C & D | |
| All motors conform to the latest requirements of NEMA, IEEE, ANSI and NEC standards | |
Specifications | |
Brand |
Goulds |
Catalog Number |
4SDX12K5GC |
Pump Type |
4" Explosion Proof Sewage Pump |
Series |
4SDX Sewage Pump |
HP |
7-1/2 |
Phase |
3 |
Volts |
575 |
RPM |
1750 |
Impeller Dia. |
7.69" |
Impeller Code |
G |
Discharge Size (in.) |
4 Inch |
1.15 SF Amps |
9.2 |
Full Load Amps |
8.1 |
Locked Rotor Amps |
50 |
Power Cord |
14/4 |
Power Cable Diameter (in.) |
0.58 |
Weight (lbs.) |
290 |
Warranty |
1 Year |
Notes & Pump Curve |
See Support Documents |
Support Documents (pdf) |
