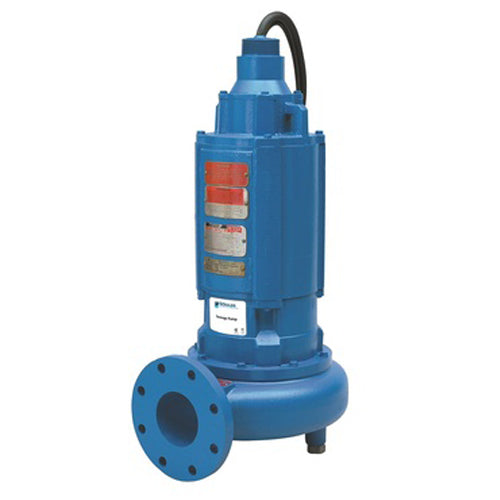

• Goulds Pumps 4SDX12K2GC , 4" Sewage Pump, Explosion Proof (7-1/2 HP, 3 Phase, 200 Volts, 7.69" Impeller Dia.)
1 1

Goulds Pumps

Goulds Pumps 4SDX12K2GC , 4" Sewage Pump, Explosion Proof (7-1/2 HP, 3 Phase, 200 Volts, 7.69" Impeller Dia.)

Goulds Pumps 4SDX12K2GC , 4" Sewage Pump, Explosion Proof (7-1/2 HP, 3 Phase, 200 Volts, 7.69" Impeller Dia.)

4SDX12K2GC

$9,871.12 USD
$14,921.00 USD $9,871.12 USD
Sale Sold out
Shipping calculated at checkout.

Don't see the price?

If the item's price is not displayed on this page, you might need to contact us for a quote or add the item to your cart to see the price.
4SDX12K2GC Goulds 4" Sewage Pump, Explosion Proof (7-1/2 HP, 3 Phase, 200 Volts, 7.69" Impeller Dia.)

Applications
Hazardous Commercial and Industrial Applications, Sewage Systems, Flood & Pollution Control, Dewatering/Effluent, Farms, Hospitals, Trailer Courts, Motels
Features
Cast iron, ASTM A48, Class 30, two vane semi-open not-clog design impeller with pump out vanes for mechanical seal protection
Heavy duty gray cast iron, ASTM A48, Class 30 Volute type casing with 4?, 125#, flanged, horizontal discharge conforming to ANSI standards
Tandem mechanical seal system in an oil filled seal chamber. Each seal operates indepentently to ensure fail safe performance
Explosion Proof Motor for use in hazardous locations. Rated Class 1, Groups C & D
All motors conform to the latest requirements of NEMA, IEEE, ANSI and NEC standards

Specifications

Brand
Goulds
Catalog Number
4SDX12K2GC
Pump Type
4" Explosion Proof Sewage Pump
Series
4SDX Sewage Pump
HP
7-1/2
Phase
3
Volts
200
RPM
1750
Impeller Dia.
7.69"
Impeller Code
G
Discharge Size (in.)
4 Inch
1.15 SF Amps
26.7
Full Load Amps
23.3
Locked Rotor Amps
144
Power Cord
10/4
Power Cable Diameter (in.)
0.73
Weight (lbs.)
255
Warranty
1 Year
Notes & Pump Curve
See Support Documents
