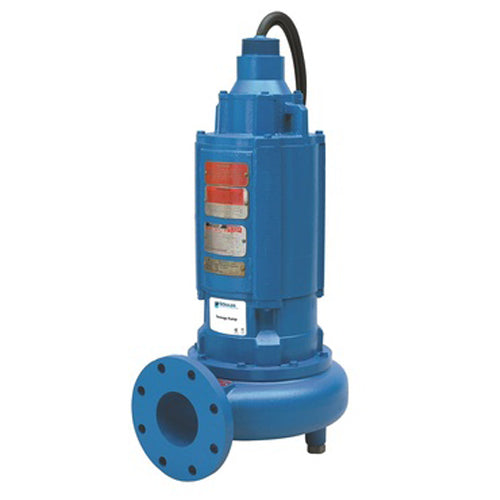

• Goulds Pumps 4SDX12G5KC , 4" Sewage Pump, Explosion Proof (2 HP, 3 Phase, 575 Volts, 5.69" Impeller Dia.)
1 1

Goulds Pumps

Goulds 4SDX12G5KC , 4" Sewage Pump, Explosion Proof (2 HP, 3 Phase, 575 Volts, 5.69" Impeller Dia.)

Goulds 4SDX12G5KC , 4" Sewage Pump, Explosion Proof (2 HP, 3 Phase, 575 Volts, 5.69" Impeller Dia.)

[COUNT] shoppers are looking at this right now

4SDX12G5KC

$9,224.40 USD
$15,374.00 USD $9,224.40 USD
Sale Sold out
Shipping calculated at checkout.

View Price in Cart
4SDX12G5KC Goulds 4" Sewage Pump, Explosion Proof (2 HP, 3 Phase, 575 Volts, 5.69" Impeller Dia.)

Applications
Hazardous Commercial and Industrial Applications, Sewage Systems, Flood & Pollution Control, Dewatering/Effluent, Farms, Hospitals, Trailer Courts, Motels
Features
Cast iron, ASTM A48, Class 30, two vane semi-open not-clog design impeller with pump out vanes for mechanical seal protection
Heavy duty gray cast iron, ASTM A48, Class 30 Volute type casing with 4?, 125#, flanged, horizontal discharge conforming to ANSI standards
Tandem mechanical seal system in an oil filled seal chamber. Each seal operates indepentently to ensure fail safe performance
Explosion Proof Motor for use in hazardous locations. Rated Class 1, Groups C & D
All motors conform to the latest requirements of NEMA, IEEE, ANSI and NEC standards

Specifications

Brand
Goulds
Catalog Number
4SDX12G5KC
Pump Type
4" Explosion Proof Sewage Pump
Series
4SDX Sewage Pump
HP
2
Phase
3
Volts
575
RPM
1750
Impeller Dia.
5.69"
Impeller Code
K
Discharge Size (in.)
4 Inch
1.15 SF Amps
2.6
Full Load Amps
2.8
Locked Rotor Amps
17.6
Power Cord
14/4
Power Cable Diameter (in.)
0.58
Weight (lbs.)
245
Warranty
1 Year
Notes & Pump Curve
See Support Documents

Support Documents (pdf)
