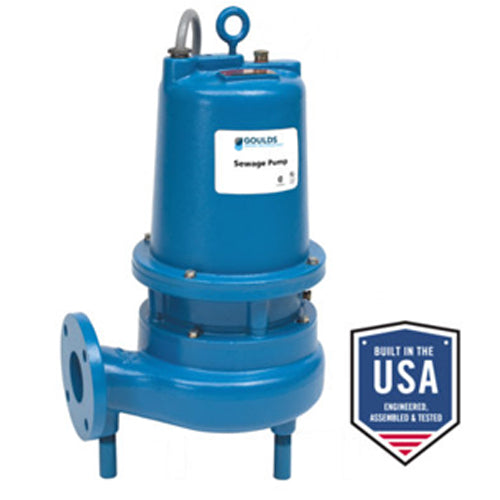

Goulds Pumps 4SD52H3BA , 4" Non-Clog Sewage Pump (3 HP, 3 Phase, 230 Volts, 7 Impeller Dia.)

Name: Goulds Pumps 4SD52H3BA , 4" Non-Clog Sewage Pump (3 HP, 3 Phase, 230 Volts, 7 Impeller Dia.)
Brand: Goulds Pumps
SKU: 4SD52H3BA
Price: 5925.09 USD
Availability: InStock

SKU:4SD52H3BA

$5,925.09 USD

~~$8,638.00 USD~~ $5,925.09 USD

Sale Sold out

Shipping calculated at checkout.

Quantity

Don't see the price?

If the item's price is not displayed on this page, you might need to contact us for a quote or add the item to your cart to see the price.

4SD52H3BA Goulds 4" Non-Clog Sewage Pump (3 HP, 3 Phase, 230 Volts, 7 Impeller Dia.)

Applications
Sewage Systems, Flood & Pollution Control, Dewatering/Effluent, Farms, Hospitals, Trailer Courts, Motels

Features
Cast iron, two vane semi-open, non-clog impeller with pump-out vanes for mechanical seal protection
Heavy duty cast iron, volute type casing for maximum efficiency
Dual Mechanical Seals
Seal Sensor Probe
Stainless steel shaft and fasteners

Specifications
Brand	Goulds
Catalog Number	4SD52H3BA
Pump Type	4" Non-Clog Sewage Pump
Series	4SD Non-Clog Dual Seal with Seal Sensor Probe
HP	3
Phase	3
Volts	230
RPM	1750
Impeller Dia. (in.)	7
Code	B
Discharge Size (in.)	4 Inch
Max Amps	14.4
L. R. Amps	49.5
KVA Code	H
Power Cable	14/4
F.L. Motor Efficiency %	83
Start Resistance	N/A
Line-Line Resistance	1.9
Weight (lbs.)	208
Warranty	1 Year
Notes & Pump Curve	See Support Documents

Support Documents (pdf)
Notes
Installation & Parts Manual
Pump Curves
