Goulds Pumps

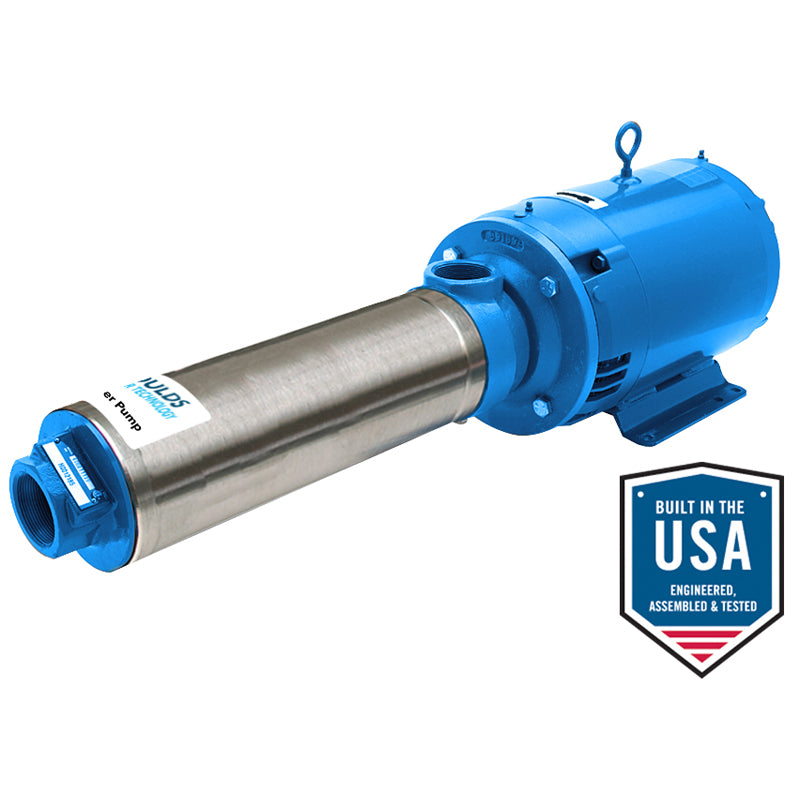

Goulds Pumps 45HB13035PE High Pressure Booster Pump (3 HP, 3 Stages, 3 Phase, ODP Enclosure, 2" NPT Suction, 2" NPT Discharge)
Goulds Pumps 45HB13035PE High Pressure Booster Pump (3 HP, 3 Stages, 3 Phase, ODP Enclosure, 2" NPT Suction, 2" NPT Discharge)
👁️
[COUNT] People are currently viewing this product.
No reviews
SKU:45HB13035PE
Regular price
$3,424.20 USD
Regular price
$5,707.00 USD
Sale price
$3,424.20 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Don't see the price?
Don't see the price?
If the item's price is not displayed on this page, you might need to contact us for a quote or add the item to your cart to see the price.
Goulds 45HB13035PE, High Pressure Centrifugal Booster Pump Type, 45HB Series, 3 HP, 3 Stages, 3 Phase, ODP Enclosure, 2" NPT Suction, 2" NPT Discharge,
| Applications | |
| Wide variety of industrial, commercial and agricultural uses, especially: High rise buildings, Multiple dwelling buildings, Reverse osmosis systems, High pressure cleaning, Spraying systems, Booster service | |
| Features | |
| Multi-Stage Design: This configuration provides a steady, quiet and vibration-free operation for years of trouble-free service. | |
| Impellers and Diffusers: Glass-filled thermoplastic. Precision molded for high efficiencies. | |
| Bowls: Constructed with 300 series stainless steel. Rabbet lock for positive alignment no gaskets required. | |
| Mechanical Seal: Carbon/ceramic faces. BUNA elastomers 300 series stainless steel metal parts. | |
| Motor: Close-coupled design. Ball bearings carry all radial/axial thrust loads. | |
| Designed for continuous operation. All ratings are within working limits of the motor. | |
| * PE on the end of nomenclature for premium efficient versions. | |
| Inlet pressure: 100 PSI maximum. | |
| Rotation: right hand, i.e., clockwise when viewed from motor end. | |
Specifications | |
Brand |
Goulds |
Catalog Number |
45HB13035PE |
Type |
High Pressure Centrifugal Booster Pump |
Series |
45HB |
HP |
3 |
Stages |
3 |
Phase |
3 |
Enclosure |
ODP |
Frame |
145 |
W.E.L |
11 |
Suction |
2" NPT |
Discharge |
2" NPT |
Hz |
60 |
RPM |
3500 |
Voltage |
208230/460 |
Notes |
See Support Documents |
Support Documents (pdf) |
