Goulds Pumps

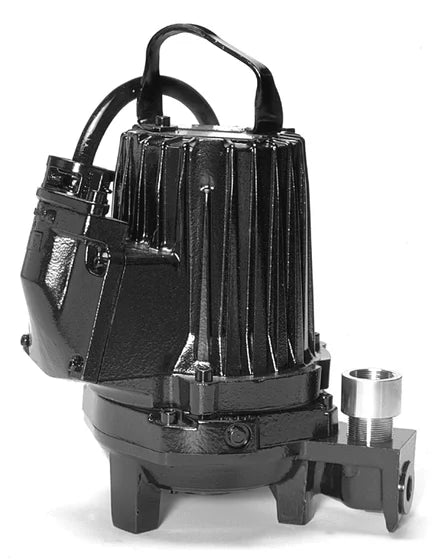

Goulds 2GA31K5DD Submersible Grinder Pump (11 HP, 3 Phase, 575 Voltage, 3475 RPM, 2" Discharge, 11 Max Amps)

Goulds 2GA31K5DD Submersible Grinder Pump (11 HP, 3 Phase, 575 Voltage, 3475 RPM, 2" Discharge, 11 Max Amps)

[COUNT] shoppers are looking at this right now

2GA31K5DD

$0.00 USD
$0.00 USD $0.00 USD
Sale Sold out
Shipping calculated at checkout.

View Price in Cart
Goulds 2GA31K5DD, Submersible Grinder Pumps Type, 2GA Series, 11 HP, 3 Phase, 575 Voltage, 3475 RPM, 2" Discharge Size, 11 Max Amps,

Applications
High head and pressure sewage systems for: Municipal, Commercial, Industrial
Features
Design: Capable of grinding municipal, commercial and industrial sewage.
Cutter System: Designed to reduce sewage to a fine slurry.
Impeller: Cast iron, semi-open, non-overloading multi-vane design with pump-out vanes for mechanical seal protection.
Casing: Cast iron, volute type for high efficiency. Adaptable for slide rail system.
Paint: Two coat paint system for superior surface protection.
Float Leakage Sensor (FLS): a small internal float switch is used to detect the presence of water in the stator chamber. Standard on all models.
Leakage Sensor Detector Circuit: The FLS, when activated, will cause the patented 24 volt MiniCAS monitoring relay to signal an alarm and, if desired, stop the pump. The MiniCAS 24 volt relay can be ordered separately for installation in a control panel by a UL or CSA certified panel shop or as a built-in option in our control panel.

Specifications

Brand
Goulds
Catalog Number
2GA31K5DD
Type
Submersible Grinder Pumps
Series
2GA
HP
11
Phase
3
Voltage
575
RPM
3475
Discharge Size
2"
Max Amps
11
Start Amps
84
Locked Rotor Amps
66
Power Cable Size
8/4 & 10/3
Max Capacity
198 GPM
Maximum Total Head
178
Notes
See support documents
