• Goulds Pumps 2GA31J1JD Submersible Grinder Pump (9.4 HP, 1 Phase, 230 Voltage, 3430 RPM, 2" Discharge, 38 Max Amps)
1 1

Goulds Pumps

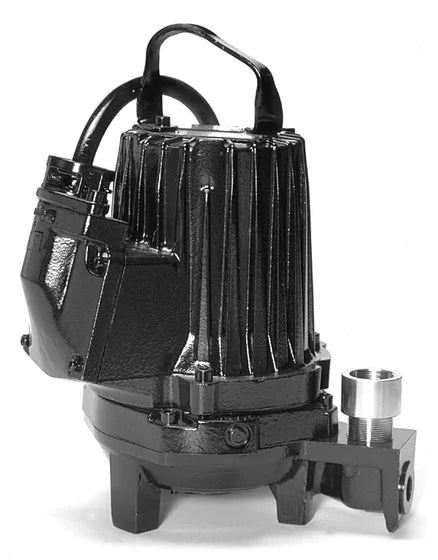

Goulds Pumps 2GA31J1JD Submersible Grinder Pump (9.4 HP, 1 Phase, 230 Voltage, 3430 RPM, 2" Discharge, 38 Max Amps)

Goulds Pumps 2GA31J1JD Submersible Grinder Pump (9.4 HP, 1 Phase, 230 Voltage, 3430 RPM, 2" Discharge, 38 Max Amps)

2GA31J1JD

$10,992.68 USD
$17,076.00 USD $10,992.68 USD
Sale Sold out
Shipping calculated at checkout.

Don't see the price?

Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.

Goulds 2GA31J1JD, Submersible Grinder Pumps Type, 2GA Series, 9.4 HP, 1 Phase, 230 Voltage, 3430 RPM, 2" Discharge Size, 38 Max Amps,

Applications
High head and pressure sewage systems for: Municipal, Commercial, Industrial
Features
Design: Capable of grinding municipal, commercial and industrial sewage.
Cutter System: Designed to reduce sewage to a fine slurry.
Impeller: Cast iron, semi-open, non-overloading multi-vane design with pump-out vanes for mechanical seal protection.
Casing: Cast iron, volute type for high efficiency. Adaptable for slide rail system.
Paint: Two coat paint system for superior surface protection.
Float Leakage Sensor (FLS): a small internal float switch is used to detect the presence of water in the stator chamber. Standard on all models.
Leakage Sensor Detector Circuit: The FLS, when activated, will cause the patented 24 volt MiniCAS monitoring relay to signal an alarm and, if desired, stop the pump. The MiniCAS 24 volt relay can be ordered separately for installation in a control panel by a UL or CSA certified panel shop or as a built-in option in our control panel.

Specifications

Brand
Goulds
Catalog Number
2GA31J1JD
Type
Submersible Grinder Pumps
Series
2GA
HP
9.4
Phase
1
Voltage
230
RPM
3430
Discharge Size
2"
Max Amps
38
Start Amps
134
Locked Rotor Amps
170
Power Cable Size
8/4 & 10/3
Max Capacity
198 GPM
Maximum Total Head
178
Notes
See support documents
