Goulds Pumps

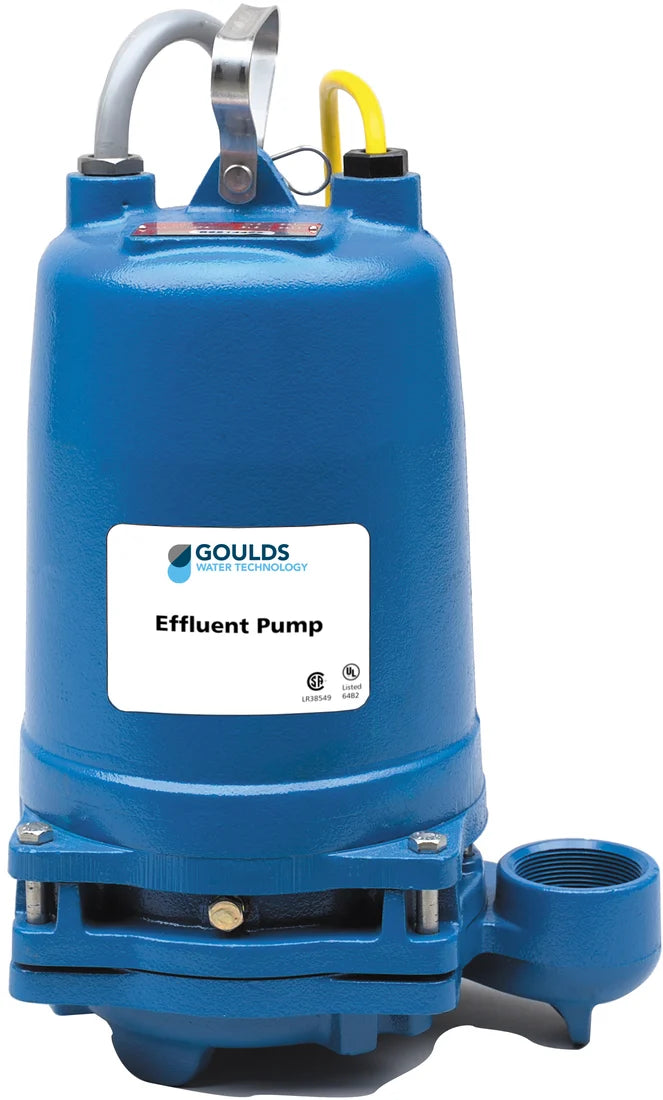

2ED51D4CA Goulds 2ED Series Submersible Effluent Pump (0.75 HP, 3 Phase, 460 Volts, 2" NPT Discharge, 94 Max GPM, 66' Max Head, Cast Iron, 20' Cord, Manual)
2ED51D4CA Goulds 2ED Series Submersible Effluent Pump (0.75 HP, 3 Phase, 460 Volts, 2" NPT Discharge, 94 Max GPM, 66' Max Head, Cast Iron, 20' Cord, Manual)
[COUNT] shoppers are looking at this right now
No reviews
SKU:2ED51D4CA
Regular price
$2,934.60 USD
Regular price
$4,891.00 USD
Sale price
$2,934.60 USD
Shipping calculated at checkout.
Quantity
View Price in Cart
Couldn't load pickup availability
2ED51D4CA Goulds Submersible Effluent Pump (0.75 HP, 3 Phase, 460 Volts, 3450 RPM, 3/4" Max Solids, 55 Max PSI, 130 Max GPM, 44 ft. Cord)
| Applications |
| APPLICATIONS: Specifically designed for the following uses: Farms, Trailer courts, Effluent systems, Motels, Schools, Hospitals, Industry |
| Features |
| Impeller: Cast iron, semi-open, non-clog with pump-out vanes for mechanical seal protection. Balanced for smooth operation. Silicon bronze impeller available as an option. |
| Casing: Cast iron volute type for maximum efficiency. 2 inch NPT discharge. |
| Dual Mechanical Seals Lower: SILICON CARBIDE VS. SILICON CARBIDE sealing faces. Stainless steel metal parts, BUNA-N elastomers. Upper: CARBON VS. CERAMIC sealing faces. Stainless steel metal parts, BUNA-N elastomers. |
| Seal Sensor Probe: Located in oil-filled chamber. If pumpage should begin to leak past lower seal it indicates to pump control panel a fault has occurred. Requires optional Seal Fail Circuit in the control panel. |
| Shaft: Corrosion resistant, stainless steel. Threaded design. Locknut on all models to guard against component damage on accidental reverse rotation. |
| Fasteners: 300 series stainless steel. |
| Capable of running dry without damage to components |
| Designed for continuous operation when fully submerged. |
|
Specifications |
|
|
Brand
|
Goulds
|
|
Catalog Number
|
2ED51D4CA
|
|
Type
|
Submersible Effluent Pump
|
|
Series
|
2ED Dual Seal with Sensor Probe
|
|
HP
|
0.75
|
|
Phase
|
3
|
|
Volts
|
460
|
|
RPM
|
3450
|
|
Max Solid Size
|
3/4"
|
|
Max PSI
|
55
|
|
Max GPM
|
130
|
|
Discharge
|
2" NPT
|
|
Max Submergence
|
50 ft.
|
|
Impeller Dia. (in.)
|
4.06
|
|
Max Amps
|
2.7
|
|
Locked Rotor Amps
|
7.9
|
|
Full Load Motor Eff. %
|
68
|
|
Resistance Start
|
NA
|
|
Power Cable Size
|
14/4
|
|
Cord
|
44 ft.
|
|
Notes & Pump Curve
|
See Support Documents
|
|
Pump Manual
|
See Support Documents
|
|
Support Documents (pdf)
|
||||
|
|
|
|||
Share
- Questions about this product? Contact our team!
- This item is direct shipped from the manufacturer. Lead times will vary. Contact for availability.
- All images shown on our website are for illustration purpose only and may not be an exact representation of the product. Actual products may vary from the images shown.
