Goulds Pumps

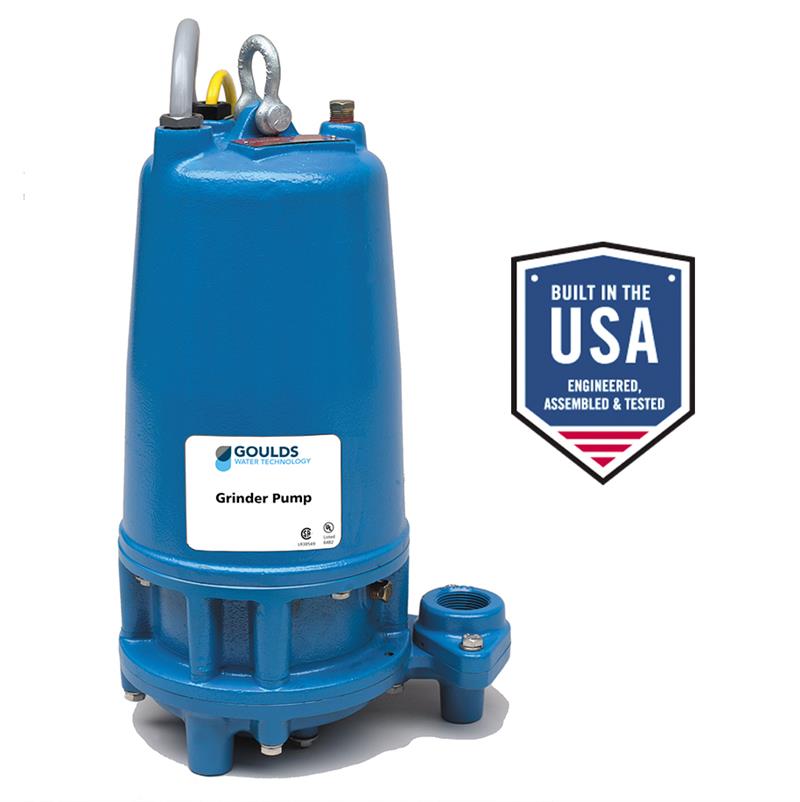

1GD51G4AA Goulds 1GD Series Dual Seal Submersible Grinder Pump (2 HP, 460 VOLTS, 3 PHASE, 3450 RPM, 3" Max Solids, 1-1/4" Discharge, 6.0 Max Amps, 20' Cord)
1GD51G4AA Goulds 1GD Series Dual Seal Submersible Grinder Pump (2 HP, 460 VOLTS, 3 PHASE, 3450 RPM, 3" Max Solids, 1-1/4" Discharge, 6.0 Max Amps, 20' Cord)
[COUNT] shoppers are looking at this right now
SKU:1GD51G4AA
Regular price
$4,671.60 USD
Regular price
$7,786.00 USD
Sale price
$4,671.60 USD
Shipping calculated at checkout.
Quantity
View Price in Cart
Couldn't load pickup availability
1GD51G4AA Goulds Submersible Grinder Pump (2 HP, 460 VOLTS, 3 PHASE)
| Applications |
| Designed for high head sewage applications where a gravity system is not practical Ideal for pressure sewage systems |
| Features |
| Silicon bronze, multi-vane semi-open impeller with pump-out vanes for mechanical seal protection; Heavy duty cast iron, volute type casing for maximum efficiency; Dual Mechanical Seals; Optional Seal Sensor Cord located in oil-filled chamber; Stainless Steel Shaft and Fasteners |
|
Tech Specs |
|
|
Brand
|
Goulds
|
|
Model Number
|
1GD51G4AA
|
|
HP
|
2
|
|
PHASE
|
3
|
|
VOLTS
|
460
|
|
RPM
|
3450
|
|
MAX AMPS
|
6
|
|
LOCKED ROTOR AMPS
|
18.7
|
|
KVA CODE
|
D
|
|
Apx. Wt. (lb)
|
105
|
|
FULL LOAD EFFICIENCY
|
81.4
|
|
RESISTANCE START
|
NA
|
|
RESISTANCE LINE-LINE
|
11.1
|
|
POWER CORD
|
14/4 STOW 20' LONG
|
|
DISCHARGE FLANGE
|
1-1/4" NPT
|
|
MAX SOLIDS
|
3"
|
|
TYPE
|
Submersible Grinder Pump
|
|
Notes
|
See Product Literature
|
|
|
|
|
|
|
|
Support Documents (pdf) |
||||
| Product Literature | ||||
| Performance Curve | ||||
