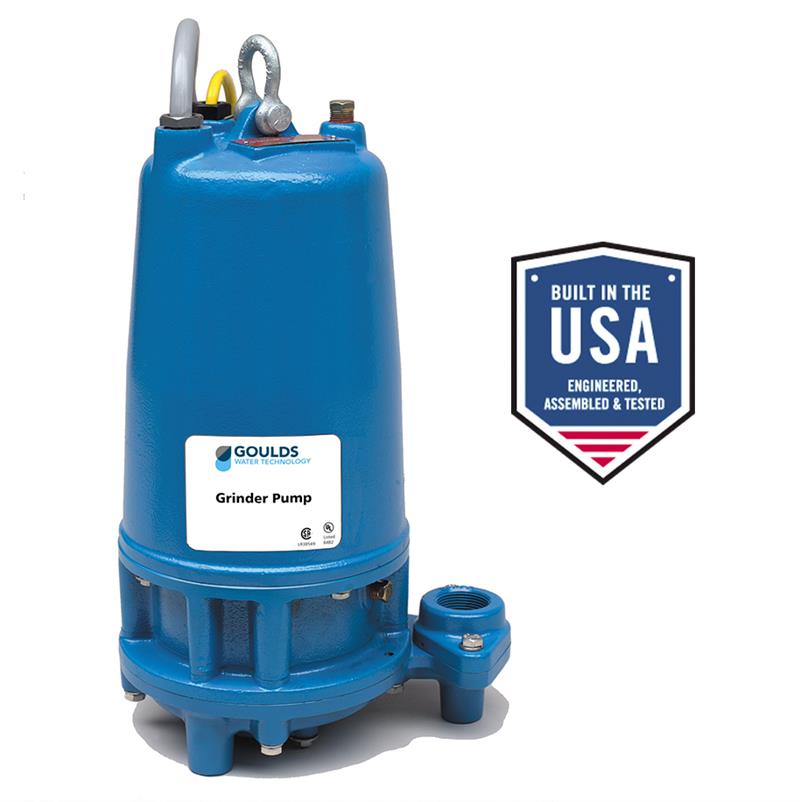

• Goulds Pumps 1GD51G3AA Submersible Grinder Pump (2 HP, 230 VOLTS, 3 PHASE)
1 1

Goulds Pumps

Goulds Pumps 1GD51G3AA Submersible Grinder Pump (2 HP, 230 VOLTS, 3 PHASE)

Goulds Pumps 1GD51G3AA Submersible Grinder Pump (2 HP, 230 VOLTS, 3 PHASE)

1GD51G3AA

$3,993.77 USD
$6,359.00 USD $3,993.77 USD
Sale Sold out
Shipping calculated at checkout.

Don't see the price?

If the item's price is not displayed on this page, you might need to contact us for a quote or add the item to your cart to see the price.
1GD51G3AA Goulds Submersible Grinder Pump (2 HP, 230 VOLTS, 3 PHASE)
Applications
Designed for high head sewage applications where a gravity system is not practical Ideal for pressure sewage systems
Features
Silicon bronze, multi-vane semi-open impeller with pump-out vanes for mechanical seal protection; Heavy duty cast iron, volute type casing for maximum efficiency; Dual Mechanical Seals; Optional Seal Sensor Cord located in oil-filled chamber; Stainless Steel Shaft and Fasteners

Tech Specs

Brand
Goulds
Model Number
1GD51G3AA
HP
2
PHASE
3
VOLTS
230
RPM
3450
MAX AMPS
12
LOCKED ROTOR AMPS
37.4
KVA CODE
D
Apx. Wt. (lb)
105
FULL LOAD EFFICIENCY
81.4
RESISTANCE START
NA
RESISTANCE LINE-LINE
2.8
POWER CORD
14/4 STOW 20' LONG
DISCHARGE FLANGE
1 1/4" NPT
MAX SOLIDS
3"
TYPE
Submersible Grinder Pump
Notes
See Product Literature

Support Documents (pdf)

Product Literature
Performance Curve
