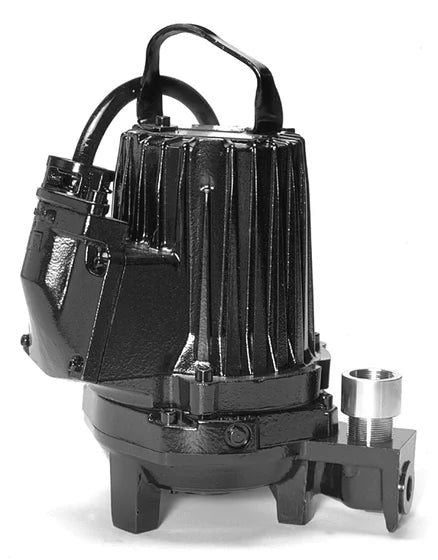

Goulds Pumps 1GA71G1HD Submersible Grinder Pump (3 HP, 1 Phase, 230 Voltage, 3450 RPM, 1 1/2" Discharge, 13 Max Amps)

Goulds 1GA71G1HD, Submersible Grinder Pumps Type, 1GA Series, 3 HP, 1 Phase, 230 Voltage, 3450 RPM, 1 1/2" Discharge Size, 13 Max Amps,

Applications
High head and pressure sewage systems for: Municipal, Commercial, Industrial
Features
Design: Capable of grinding municipal, commercial and industrial sewage.
Cutter System: Designed to reduce sewage to a fine slurry.
Impeller: Cast iron, semi-open, non-overloading multi-vane design with pump-out vanes for mechanical seal protection.
Casing: Cast iron, volute type for high efficiency. Adaptable for slide rail system.
Paint: Two coat paint system for superior surface protection.
Float Leakage Sensor (FLS): a small internal float switch is used to detect the presence of water in the stator chamber. Standard on all models.
Leakage Sensor Detector Circuit: The FLS, when activated, will cause the patented 24 volt MiniCAS monitoring relay to signal an alarm and, if desired, stop the pump. The MiniCAS 24 volt relay can be ordered separately for installation in a control panel by a UL or CSA certified panel shop or as a built-in option in our control panel.

Specifications
Brand	Goulds
Catalog Number	1GA71G1HD
Type	Submersible Grinder Pumps
Series	1GA
HP	3
Phase	1
Voltage	230
RPM	3450
Discharge Size	1 1/2"
Max Amps	13
Start Amps	74
Locked Rotor Amps	52
Power Cable Size	14/7
Max Capacity	92 GPM
Maximum Total Head	117
Notes	See support documents
