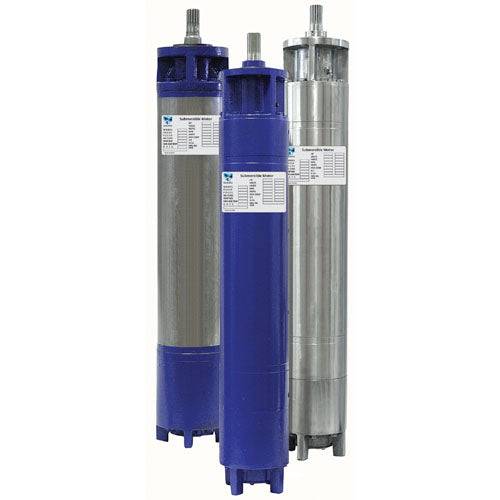

Goulds 66M504, CentriPro 6" Motor (50 HP, 3 Phase, 460 Volts, 6" Diameter)

Name: Goulds 66M504, CentriPro 6" Motor (50 HP, 3 Phase, 460 Volts, 6" Diameter)
Brand: Goulds Pumps
SKU: 66M504
Price: 7166.99 USD
Availability: InStock

SKU:66M504

$7,166.99 USD

~~$15,676.00 USD~~ $7,166.99 USD

Sale Sold out

Shipping calculated at checkout.

Quantity

Don't see the price?

If the item's price is not displayed on this page, you might need to contact us for a quote or add the item to your cart to see the price.

66M504 Goulds Motor (50 HP, 3 Phase, 460 Volts, 6" Diameter)

Applications
Below ground well pump motor for residential and small municipal water supply as well as light irrigation applications.

Features
Insulated
Heat Resistant
High Torque
Carbon Sleeve Bearings
Corrosion Protection
Baked Epoxy Coating

Tech Specs
Brand	Goulds Pumps
Model Number	66M504
Brand	Goulds Pumps
Type	Goulds 6" Well Pump Motor
HP	50
Phase	3
Volts	460
Amps	70
kW	37
S.F.	1.15
Rated Input Watts	45210
Service Factor Watts	52380
L.R. Amps	465
Class 14 Starter	HSKC
Motor Dia. vs Flange Dia.	6"
Notes	See Goulds Literature

Support Documents (pdf)
Goulds Literature
