Goulds Pumps

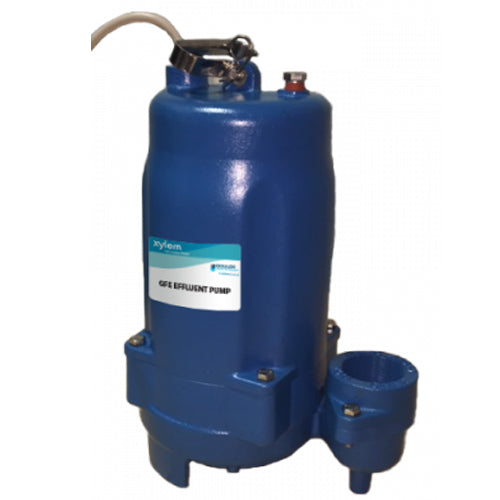

GFE1012M Goulds Pumps Cast Iron Effluent Pumps (1 HP, 230 Volts)
GFE1012M Goulds Pumps Cast Iron Effluent Pumps (1 HP, 230 Volts)
SKU:GFE1012M
Regular price
$862.63 USD
Regular price
$1,340.00 USD
Sale price
$862.63 USD
Unit price
/
per
Shipping calculated at checkout.
Don't see the price?
Don't see the price?
Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.
Couldn't load pickup availability
Goulds Pumps GFE1012M, GFE Series , 1 HP, 230 Volts, Not Supplied Float Switch Style,
| Applications | |
| Specifically designed for the following uses: Homes, farms, trailer courts, motels, schools, hospitals, small business, effluent systems. | |
| Features | |
| Motor is fully submerged in high-grade turbine oil for lubrication and efficient heat transfer | |
| Class B insulation | |
| Impeller: Cast iron, with dual vanes. Balanced for smooth operation. 3/4 HP, high head is glass reinforced thermoplastic | |
| Casing: Cast iron volute type for maximum efficiency. 1.5" or 2" NPT discharge (with included adapter) | |
| Mechanical Seal: Silicon Carbide vs. Silicon Carbide sealing faces. Stainless steel metal parts, BUNA-N elastomers | |
| Shaft: Corrosion-resistant, stainless steel. Threaded design | |
| Fasteners: 300 series stainless steel | |
| Capable of running dry without damage to components | |
| Designed for continuous operation when fully submerged | |
Specifications | |
Brand |
Goulds Pumps |
Catalog Number |
GFE1012M |
Type |
Cast Iron Effluent Pumps |
Series |
GFE Series |
HP |
1 |
Volts |
230 |
Max. Amps |
12.5 |
Locked Rotor Amps |
36.2 |
Min. Circuit Breaker |
15A |
Phase |
1 |
RPM |
3400 |
Impeller Diameter (in.) |
4.67 |
Float Switch Style |
Not Supplied |
Cord Length (ft.) |
20' |
Power Cable Size |
14/3 |
Discharge Connection (in.) |
1.5" or 2" NPT |
Discharge Adapter |
Included |
Max. Solids Size |
3/4" |
Shipping Weight (lbs.) |
65 |
Height |
16-1/2" |
Width |
11-1/4" |
Temperature |
104 F. CONT. / 140 F. INTER. |
Notes |
See Support Documents |
Support Documents (pdf) | ||||
