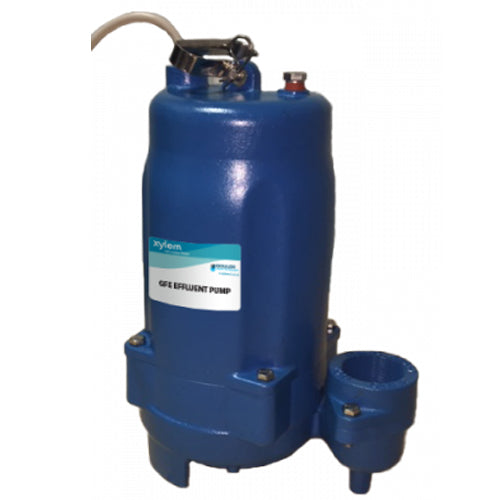

GFE1012 Goulds Pumps Cast Iron Effluent Pumps (1 HP, 230 Volts, Vertical Float)

GFE1012 Goulds Pumps Cast Iron Effluent Pumps (1 HP, 230 Volts, Vertical Float)

GFE1012

$884.51 USD
$1,374.00 USD $884.51 USD
Sale Sold out
Shipping calculated at checkout.

Don't see the price?

Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.

Goulds Pumps GFE1012, GFE Series , 1 HP, 230 Volts, Vertical Float Switch Style,

Applications
Specifically designed for the following uses: Homes, farms, trailer courts, motels, schools, hospitals, small business, effluent systems.
Features
Motor is fully submerged in high-grade turbine oil for lubrication and efficient heat transfer
Class B insulation
Impeller: Cast iron, with dual vanes. Balanced for smooth operation. 3/4 HP, high head is glass reinforced thermoplastic
Casing: Cast iron volute type for maximum efficiency. 1.5" or 2" NPT discharge (with included adapter)
Mechanical Seal: Silicon Carbide vs. Silicon Carbide sealing faces. Stainless steel metal parts, BUNA-N elastomers
Shaft: Corrosion-resistant, stainless steel. Threaded design
Fasteners: 300 series stainless steel
Capable of running dry without damage to components
Designed for continuous operation when fully submerged

Specifications

Brand
Goulds Pumps
Catalog Number
GFE1012
Type
Cast Iron Effluent Pumps
Series
GFE Series
HP
1
Volts
230
Max. Amps
12.5
Locked Rotor Amps
36.2
Min. Circuit Breaker
15A
Phase
1
RPM
3400
Impeller Diameter (in.)
4.67
Float Switch Style
Vertical
Cord Length (ft.)
20'
Power Cable Size
14/3
Discharge Connection (in.)
1.5" or 2" NPT
Discharge Adapter
Included
Max. Solids Size
3/4"
Shipping Weight (lbs.)
65
Height
16-1/2"
Width
11-1/4"
Temperature
104 F. CONT. / 140 F. INTER.
Notes
See Support Documents

Support Documents (pdf)
