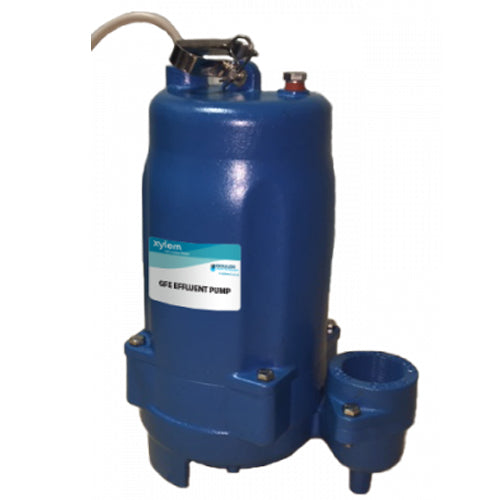

GFE0712 Goulds Pumps Cast Iron Effluent Pumps (3/4 HP, 230 Volts, Vertical Float)

GFE0712 Goulds Pumps Cast Iron Effluent Pumps (3/4 HP, 230 Volts, Vertical Float)

👁️ [COUNT] People are currently viewing this product.

GFE0712

$906.60 USD
$1,511.00 USD $906.60 USD
Sale Sold out
Shipping calculated at checkout.

Don't see the price?

If you are unable to find the price for this item on our page, please contact us directly for a quote.

Some products require you to ADD TO CART to see the price.

Tax

NY, NJ and CT will be charged tax on most orders.

Sales tax will need to be collected on all AMT and Jorc products, regardless of the destination state.

* If you are tax exempt and would like to place an order, email your tax exempt form to Sales@kgpowersystems.com.

** Taxes may be applied after an order is placed.

Goulds Pumps GFE0712, GFE Series , 3/4 HP, 230 Volts, Vertical Float Switch Style,

Applications
Specifically designed for the following uses: Homes, farms, trailer courts, motels, schools, hospitals, small business, effluent systems.
Features
Motor is fully submerged in high-grade turbine oil for lubrication and efficient heat transfer
Class B insulation
Impeller: Cast iron, with dual vanes. Balanced for smooth operation. 3/4 HP, high head is glass reinforced thermoplastic
Casing: Cast iron volute type for maximum efficiency. 1.5" or 2" NPT discharge (with included adapter)
Mechanical Seal: Silicon Carbide vs. Silicon Carbide sealing faces. Stainless steel metal parts, BUNA-N elastomers
Shaft: Corrosion-resistant, stainless steel. Threaded design
Fasteners: 300 series stainless steel
Capable of running dry without damage to components
Designed for continuous operation when fully submerged

Specifications

Brand
Goulds Pumps
Catalog Number
GFE0712
Type
Cast Iron Effluent Pumps
Series
GFE Series
HP
3/4
Volts
230
Max. Amps
10
Locked Rotor Amps
27.5
Min. Circuit Breaker
15A
Phase
1
RPM
3400
Impeller Diameter (in.)
4.32
Float Switch Style
Vertical
Cord Length (ft.)
20'
Power Cable Size
14/3
Discharge Connection (in.)
1.5" or 2" NPT
Discharge Adapter
Included
Max. Solids Size
3/4"
Shipping Weight (lbs.)
67.5
Height
16-1/2"
Width
11-1/4"
Temperature
104 F. CONT. / 140 F. INTER.
Notes
See Support Documents
