Mody Pumps

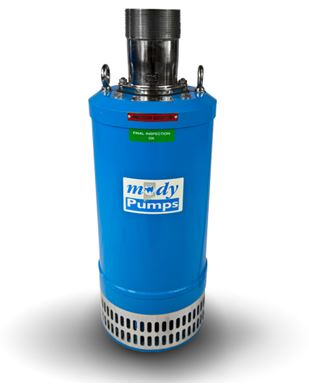

G536T Mody Pump, Dewatering Pump (7.5 HP, 240/480 V, 3" Discharge, Three Phase, 22/11 Amps)

Name: G536T Mody Pump, Dewatering Pump (7.5 HP, 240/480 V, 3" Discharge, Three Phase, 22/11 Amps)
Brand: Mody Pumps
SKU: G536T
Availability: InStock

SKU:G536T

$0.00 USD

Sale Sold out

Shipping calculated at checkout.

Quantity

Don't see the price?

If the item's price is not displayed on this page, you might need to contact us for a quote or add the item to your cart to see the price.

Mody G536T, 7.5 HP, 240/480 V, 3" Discharge, Three Phase, 22/11 Amps

Applications
PORTABLE ELECTRIC SUBMERSIBLE PUMP FOR CORROSIVE & ABRASIVE APPLICATIONS

Features
2-pole induction continuous rated motor with squirrel cage rotor
Max. temperature of the pump liquid : 104F/40C
Max. start/stop per hour : 15
Waterproof/oil proof, rubber-insulated, neoprene-sheathed copper conductor flexible cable, 50ft. (15m) length standard.
Epoxy coated Aluminum Outer Casing

Specifications
Brand	Mody
Catalog Number	G536T
Type	Submersible Dewatering Pump
Series	Slimline Series
Description	Heavy Duty Dewatering Pump
HP	7.5
Voltage	240/480
Discharge	3"
Phase	Three
Amperage	22/11
Height	28.5"
Width	10.75"
Hole Size	0.25"
Weight	135 lbs.
Warranty	1 Year
Notes	See Support Documents

Support Documents (pdf)

Mody Manual

Questions about this product? Contact our team!
Product images may be generic.

View full details
