U.S. Motors

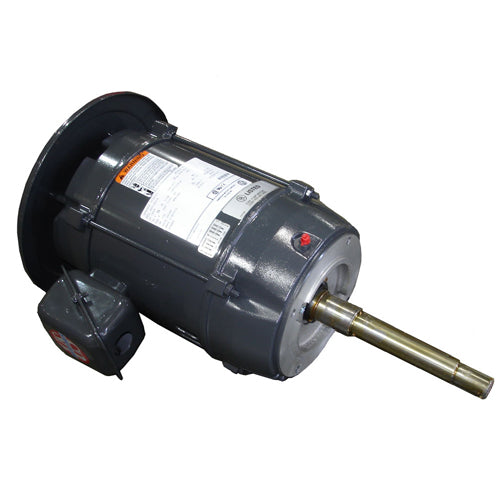

FF60E1DV U.S. Motors Vertical Fire Pump Motor (60 HP, 208-230/460 Voltage, Three Phase, 3600 RPM)

FF60E1DV U.S. Motors Vertical Fire Pump Motor (60 HP, 208-230/460 Voltage, Three Phase, 3600 RPM)

[COUNT] shoppers are looking at this right now

FF60E1DV

$7,465.14 USD
$0.00 USD $7,465.14 USD
Sale Sold out
Shipping calculated at checkout.

Don't see the price?

If you are unable to find the price for this item on our page, please contact us directly for a quote.

Some products require you to ADD TO CART to see the price.

Tax

NY, NJ and CT will be charged tax on most orders.

* If you are tax exempt, email your tax form to Sales@kgpowersystems.com

U.S. Motors: FF60E1DV, HP: 60, RPM: 3600, Voltage: 208-230/460, Three Phase, Frame: 326JP, Full Load Amps: 152-136/68, SF: 1.15, C Dim. (inches): 38.8, Shaft: JP,

Applications
For fire pump applications per NFPA 20 where contaminants are minimal.
Features
Class F Insulation, Class B Rise At Service Factor Double Shielded Bearings
Rolled Steel Frame 180-320, Cast Iron Frame On 360 Lifting Provisions 210 Frame & Larger
Aluminum End Shields 180-250, Cast Iron End Shields 280-360 Suitable For Wye-Delta Start 250 Frame & Larger
Premasked Mylar Nameplate 180-320, Stainless Steel On 360 Dual Voltage Ratings Suitable For Part Winding Start (PWS) On Low Voltage
40C Ambient, NEMA Design B Performance On 60 Hertz Sine Wave Power 575 Volt Ratings Comply With NRCan Standards
Regreasable Bearings 180 Frame & Larger Oversized Connection Diagram, "CE" Mark On Nameplate

Tech Specs

Brand
U.S. Motors/Emerson
U.S. Motors Model Number
FF60E1DV
HP
60
RPM
3600
Voltage
208-230/460
Phase
Three Phase
Frame
326JP
Full Load Eff.
93
Full Load Amps
152-136/68
SF
1.15
C Dim. (inches)
38.8
Shaft
JP
Mount
Footless
Notes
See Product Literature
Apx. Wt. (lbs.)
460

Support Documents (pdf)

Product Literature
  • Questions about this product? Contact our team!
  • This item is direct shipped from the manufacturer. Lead times will vary. Contact for availability.
  • ALL IMAGES SHOWN ON OUR WEBSITE ARE FOR ILLUSTRATION PURPOSE ONLY AND MAY NOT BE AN EXACT REPRESENTATION OF THE PRODUCT. ACTUAL PRODUCTS MAY VARY FROM THE IMAGES SHOWN.
View full details
