U.S. Motors

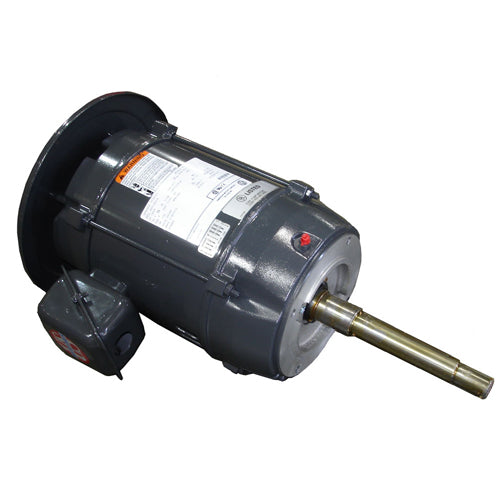

FF50E1XV U.S. Motors Vertical Fire Pump Motor (50 HP, 200/400 Voltage, Three Phase, 3600 RPM)

FF50E1XV U.S. Motors Vertical Fire Pump Motor (50 HP, 200/400 Voltage, Three Phase, 3600 RPM)

FF50E1XV

$5,541.39 USD
$5,541.39 USD
Sale Sold out
Shipping calculated at checkout.

Don't see the price?

Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.

U.S. Motors: FF50E1XV, HP: 50, RPM: 3600, Voltage: 200/400, Three Phase, Frame: 324JP, Full Load Amps: 134/67, SF: 1.15, C Dim. (inches): 29, Shaft: JP,

Applications
For fire pump applications per NFPA 20 where contaminants are minimal.
Features
Class F Insulation, Class B Rise At Service Factor Double Shielded Bearings
Rolled Steel Frame 180-320, Cast Iron Frame On 360 Lifting Provisions 210 Frame & Larger
Aluminum End Shields 180-250, Cast Iron End Shields 280-360 Suitable For Wye-Delta Start 250 Frame & Larger
Premasked Mylar Nameplate 180-320, Stainless Steel On 360 Dual Voltage Ratings Suitable For Part Winding Start (PWS) On Low Voltage
40C Ambient, NEMA Design B Performance On 60 Hertz Sine Wave Power 575 Volt Ratings Comply With NRCan Standards
Regreasable Bearings 180 Frame & Larger Oversized Connection Diagram, "CE" Mark On Nameplate

Tech Specs

Brand
U.S. Motors/Emerson
U.S. Motors Model Number
FF50E1XV
HP
50
RPM
3600
Voltage
200/400
Phase
Three Phase
Frame
324JP
Full Load Eff.
92.4
Full Load Amps
134/67
SF
1.15
C Dim. (inches)
29
Shaft
JP
Mount
Footless
Notes
See Product Literature
Apx. Wt. (lbs.)
400

Support Documents (pdf)

Product Literature
View full details
