U.S. Motors

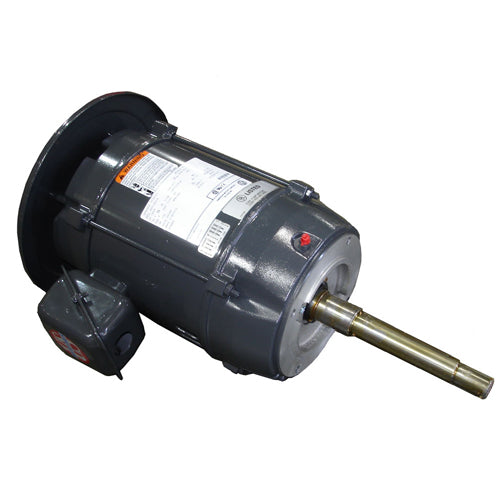

FF25E1DV U.S. Motors Vertical Fire Pump Motor (25 HP, 208-230/460 Voltage, Three Phase, 3600 RPM)

FF25E1DV U.S. Motors Vertical Fire Pump Motor (25 HP, 208-230/460 Voltage, Three Phase, 3600 RPM)

FF25E1DV

$2,401.73 USD
$2,401.73 USD
Sale Sold out
Shipping calculated at checkout.

Don't see the price?

Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.

U.S. Motors: FF25E1DV, HP: 25, RPM: 3600, Voltage: 208-230/460, Three Phase, Frame: 256JP, Full Load Amps: 67-58/28.9, SF: 1.15, C Dim. (inches): 28.3, Shaft: JP,

Applications
For fire pump applications per NFPA 20 where contaminants are minimal.
Features
Class F Insulation, Class B Rise At Service Factor Double Shielded Bearings
Rolled Steel Frame 180-320, Cast Iron Frame On 360 Lifting Provisions 210 Frame & Larger
Aluminum End Shields 180-250, Cast Iron End Shields 280-360 Suitable For Wye-Delta Start 250 Frame & Larger
Premasked Mylar Nameplate 180-320, Stainless Steel On 360 Dual Voltage Ratings Suitable For Part Winding Start (PWS) On Low Voltage
40C Ambient, NEMA Design B Performance On 60 Hertz Sine Wave Power 575 Volt Ratings Comply With NRCan Standards
Regreasable Bearings 180 Frame & Larger Oversized Connection Diagram, "CE" Mark On Nameplate

Tech Specs

Brand
U.S. Motors/Emerson
U.S. Motors Model Number
FF25E1DV
HP
25
RPM
3600
Voltage
208-230/460
Phase
Three Phase
Frame
256JP
Full Load Eff.
91
Full Load Amps
67-58/28.9
SF
1.15
C Dim. (inches)
28.3
Shaft
JP
Mount
Footless
Notes
See Product Literature
Apx. Wt. (lbs.)
195

Support Documents (pdf)

Product Literature
View full details
