U.S. Motors

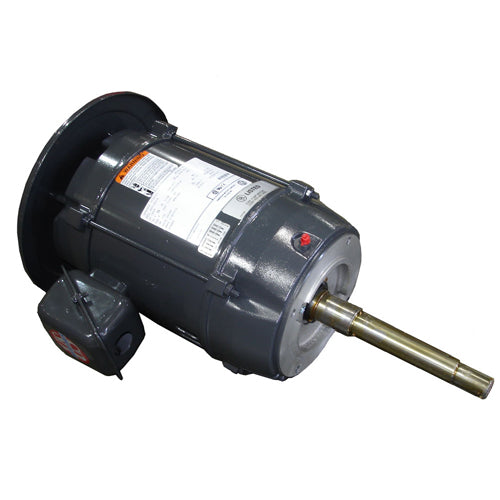

FF15E1GV U.S. Motors Vertical Fire Pump Motor (15 HP, 575 Voltage, Three Phase, 3600 RPM)

FF15E1GV U.S. Motors Vertical Fire Pump Motor (15 HP, 575 Voltage, Three Phase, 3600 RPM)

FF15E1GV

$1,449.33 USD
$1,449.33 USD
Sale Sold out
Shipping calculated at checkout.

Don't see the price?

Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.

U.S. Motors: FF15E1GV, HP: 15, RPM: 3600, Voltage: 575, Three Phase, Frame: 215JP, Full Load Amps: 14.5, SF: 1.15, C Dim. (inches): 24, Shaft: JP,

Applications
For fire pump applications per NFPA 20 where contaminants are minimal.
Features
Class F Insulation, Class B Rise At Service Factor Double Shielded Bearings
Rolled Steel Frame 180-320, Cast Iron Frame On 360 Lifting Provisions 210 Frame & Larger
Aluminum End Shields 180-250, Cast Iron End Shields 280-360 Suitable For Wye-Delta Start 250 Frame & Larger
Premasked Mylar Nameplate 180-320, Stainless Steel On 360 Dual Voltage Ratings Suitable For Part Winding Start (PWS) On Low Voltage
40C Ambient, NEMA Design B Performance On 60 Hertz Sine Wave Power 575 Volt Ratings Comply With NRCan Standards
Regreasable Bearings 180 Frame & Larger Oversized Connection Diagram, "CE" Mark On Nameplate

Tech Specs

Brand
U.S. Motors/Emerson
U.S. Motors Model Number
FF15E1GV
HP
15
RPM
3600
Voltage
575
Phase
Three Phase
Frame
215JP
Full Load Eff.
90.2
Full Load Amps
14.5
SF
1.15
C Dim. (inches)
24
Shaft
JP
Mount
Footless
Notes
See Product Literature
Apx. Wt. (lbs.)
140

Support Documents (pdf)

Product Literature
