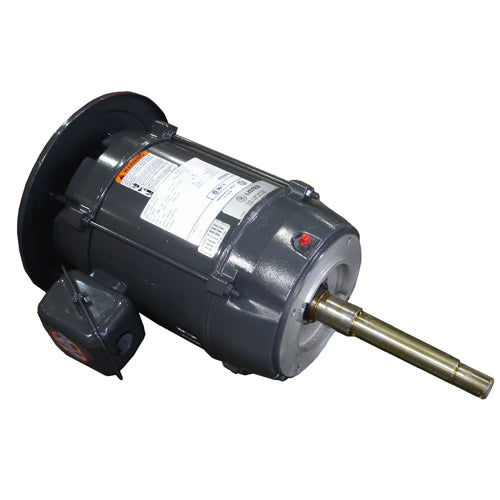

FF15E1DV U.S. Motors Vertical Fire Pump Motor (15 HP, 208-230/460 Voltage, Three Phase, 3600 RPM)

FF15E1DV U.S. Motors Vertical Fire Pump Motor (15 HP, 208-230/460 Voltage, Three Phase, 3600 RPM)

[COUNT] shoppers are looking at this right now

FF15E1DV

$2,136.45 USD
$0.00 USD $2,136.45 USD
Sale Sold out
Shipping calculated at checkout.

U.S. Motors: FF15E1DV, HP: 15, RPM: 3600, Voltage: 208-230/460, Three Phase, Frame: 215JP, Full Load Amps: 41-36/18.1, SF: 1.15, C Dim. (inches): 24, Shaft: JP,

Applications
For fire pump applications per NFPA 20 where contaminants are minimal.
Features
Class F Insulation, Class B Rise At Service Factor Double Shielded Bearings
Rolled Steel Frame 180-320, Cast Iron Frame On 360 Lifting Provisions 210 Frame & Larger
Aluminum End Shields 180-250, Cast Iron End Shields 280-360 Suitable For Wye-Delta Start 250 Frame & Larger
Premasked Mylar Nameplate 180-320, Stainless Steel On 360 Dual Voltage Ratings Suitable For Part Winding Start (PWS) On Low Voltage
40C Ambient, NEMA Design B Performance On 60 Hertz Sine Wave Power 575 Volt Ratings Comply With NRCan Standards
Regreasable Bearings 180 Frame & Larger Oversized Connection Diagram, "CE" Mark On Nameplate

Tech Specs

Brand
U.S. Motors/Emerson
U.S. Motors Model Number
FF15E1DV
HP
15
RPM
3600
Voltage
208-230/460
Phase
Three Phase
Frame
215JP
Full Load Eff.
90.2
Full Load Amps
41-36/18.1
SF
1.15
C Dim. (inches)
24
Shaft
JP
Mount
Footless
Notes
See Product Literature
Apx. Wt. (lbs.)
140

Support Documents (pdf)

Product Literature
