U.S. Motors

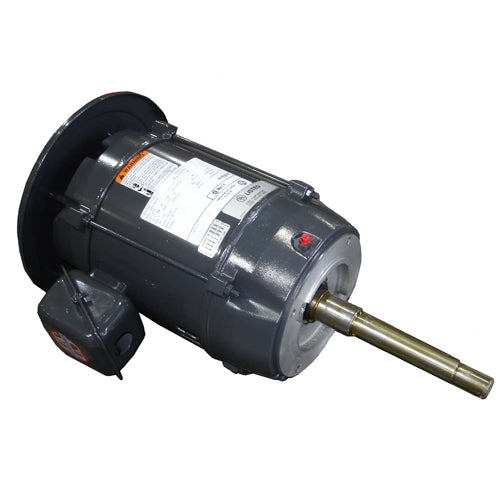

FF100E1XV U.S. Motors Vertical Fire Pump Motor (100 HP, 200/400 Voltage, Three Phase, 3600 RPM)
FF100E1XV U.S. Motors Vertical Fire Pump Motor (100 HP, 200/400 Voltage, Three Phase, 3600 RPM)
👁️
[COUNT] People are currently viewing this product.
No reviews
SKU:FF100E1XV
Regular price
$10,708.89 USD
Regular price
Sale price
$10,708.89 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Don't see the price?
Don't see the price?
If the item's price is not displayed on this page, you might need to contact us for a quote or add the item to your cart to see the price.
U.S. Motors: FF100E1XV, HP: 100, RPM: 3600, Voltage: 200/400, Three Phase, Frame: 365JP, Full Load Amps: 258/129, SF: 1.15, C Dim. (inches): 30.5, Shaft: JP,
| Applications | |
| For fire pump applications per NFPA 20 where contaminants are minimal. | |
| Features | |
| Class F Insulation, Class B Rise At Service Factor | Double Shielded Bearings |
| Rolled Steel Frame 180-320, Cast Iron Frame On 360 | Lifting Provisions 210 Frame & Larger |
| Aluminum End Shields 180-250, Cast Iron End Shields 280-360 | Suitable For Wye-Delta Start 250 Frame & Larger |
| Premasked Mylar Nameplate 180-320, Stainless Steel On 360 | Dual Voltage Ratings Suitable For Part Winding Start (PWS) On Low Voltage |
| 40C Ambient, NEMA Design B Performance On 60 Hertz Sine Wave Power | 575 Volt Ratings Comply With NRCan Standards |
| Regreasable Bearings 180 Frame & Larger | Oversized Connection Diagram, "CE" Mark On Nameplate |
Tech Specs | |
Brand |
U.S. Motors/Emerson |
U.S. Motors Model Number |
FF100E1XV |
HP |
100 |
RPM |
3600 |
Voltage |
200/400 |
Phase |
Three Phase |
Frame |
365JP |
Full Load Eff. |
93.6 |
Full Load Amps |
258/129 |
SF |
1.15 |
C Dim. (inches) |
30.5 |
Shaft |
JP |
Mount |
Footless |
Notes |
See Product Literature |
Apx. Wt. (lbs.) |
604 |
Support Documents (pdf) | ||||
| Product Literature | ||||
