U.S. Motors

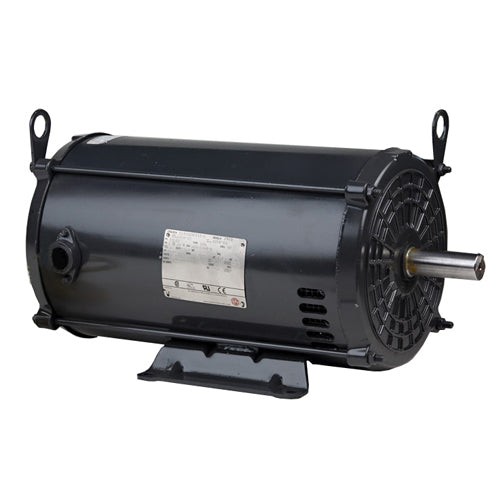

FD34CA1PZ U.S. Motors Aeration Fan and Crop Dryer Motors (3/4 HP, 115/230 Voltage, Single Phase Phase, 3600 RPM)

FD34CA1PZ U.S. Motors Aeration Fan and Crop Dryer Motors (3/4 HP, 115/230 Voltage, Single Phase Phase, 3600 RPM)

FD34CA1PZ

$294.59 USD
$294.59 USD
Sale Sold out
Shipping calculated at checkout.

Don't see the price?

Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.

U.S. Motors: FD34CA1PZ, HP: 3/4, RPM: 3600, Voltage: 115/230, Phase: Single Phase, Frame: 56Z, C Dim (inches): 11, Full Load Eff.: -, Full Load Amps: 11.0/5.5, Type: Capacitor Start Agriculture,
Applications
For air over applications or fans mounted directly on the motor shaft. Specifically designed for use on vane axial crop dryers and aeration fans.
Features
Totally Enclosed Air Over
Class B Insulation On 56 Frame
Class F Insulation On 140 Frame
Keyed Shaft Drilled On Center 1" Deep & Tapped 1/4" UNC
56Z Frame Motors Have 5/8" Dia. X 2-1/4" Long Shaft
F1 Assembly Position
Open Dripproof Air-Over
Thermostat Protected (Overheating Protection) Requires Leads to be Connected to Control Circuit of Motor Controller.
Non-Standard 1-1/8" Diameter x 3-1/4" Long Keyed Shaft Is Drilled On Center 1" Deep & Tapped 1/4-20 UNC
Rodent Screens, Extra Long Leads, Class F Insulation

Tech Specs

Brand
U.S. Motors/Emerson
U.S. Motors Model Number
FD34CA1PZ
HP
3/4
RPM
3600
Voltage
115/230
Phase
Single Phase
Frame
56Z
SF
1
C Dim (inches)
11
Full Load Eff.
-
Full Load Amps
11.0/5.5
Type
Capacitor Start Agriculture
Notes
See Product Literature
Apx. Wt. (lbs.)
25


















Support Documents (pdf)

Product Literature
