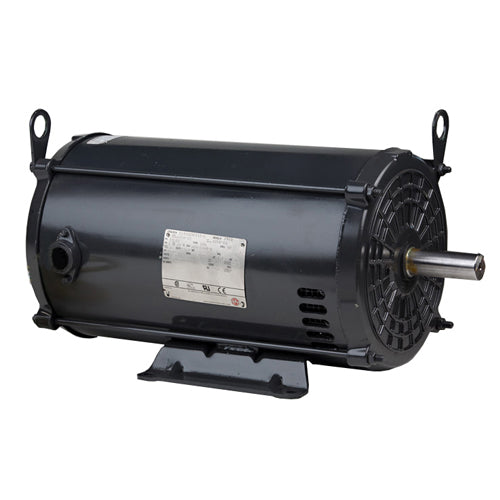

FD32CA1P14 U.S. Motors Aeration Fan and Crop Dryer Motors (1-1/2 HP, 115/230 Voltage, Single Phase Phase, 3600 RPM)

U.S. Motors: FD32CA1P14, HP: 1-1/2, RPM: 3600, Voltage: 115/230, Phase: Single Phase, Frame: 143TZ, C Dim (inches): 12.6, Full Load Eff.: 73, Full Load Amps: 17.4/8.7, Type: Capacitor Start Agriculture,

Applications

For air over applications or fans mounted directly on the motor shaft. Specifically designed for use on vane axial crop dryers and aeration fans.

Features

Totally Enclosed Air Over

Class B Insulation On 56 Frame

Class F Insulation On 140 Frame

Keyed Shaft Drilled On Center 1" Deep & Tapped 1/4" UNC

56Z Frame Motors Have 5/8" Dia. X 2-1/4" Long Shaft

F1 Assembly Position

Open Dripproof Air-Over

Thermostat Protected (Overheating Protection) Requires Leads to be Connected to Control Circuit of Motor Controller.

Non-Standard 1-1/8" Diameter x 3-1/4" Long Keyed Shaft Is Drilled On Center 1" Deep & Tapped 1/4-20 UNC

Rodent Screens, Extra Long Leads, Class F Insulation

Tech Specs
Brand	U.S. Motors/Emerson
U.S. Motors Model Number	FD32CA1P14
HP	1-1/2
RPM	3600
Voltage	115/230
Phase	Single Phase
Frame	143TZ
SF	1
C Dim (inches)	12.6
Full Load Eff.	73
Full Load Amps	17.4/8.7
Type	Capacitor Start Agriculture
Notes	See Product Literature
Apx. Wt. (lbs.)	32
