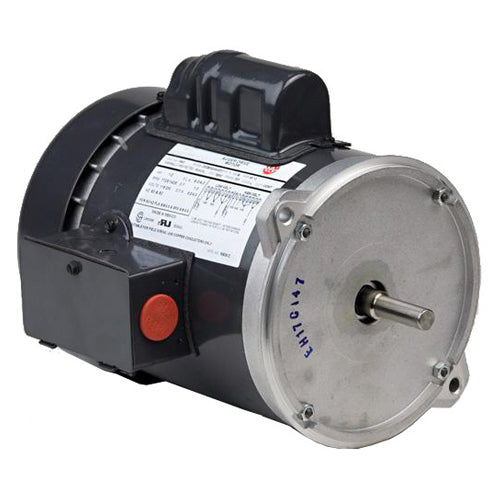

FD13SM2DZYR U.S. Motors Auger Duty Motors (1/3 HP, 208-230/460 Voltage, Three Phase Phase, 1800 RPM)
FD13SM2DZYR U.S. Motors Auger Duty Motors (1/3 HP, 208-230/460 Voltage, Three Phase Phase, 1800 RPM)
👁️
[COUNT] People are currently viewing this product.
No reviews
SKU:FD13SM2DZYR
Regular price
$273.77 USD
Regular price
Sale price
$273.77 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Don't see the price?
Don't see the price?
If the item's price is not displayed on this page, you might need to contact us for a quote or add the item to your cart to see the price.
U.S. Motors: FD13SM2DZYR, HP: 1/3, RPM: 1800, Voltage: 208-230/460, Phase: Three Phase, Frame: 56Y, C Dim. (inches): 11.25, Full Load Amps: 1.8-2.0/1.0, Type: Auger Duty Motor,
| Applications | |
| For use on augers. | |
| Features | |
| Totally Enclosed Fan Cooled (except where noted) | Ball Bearings |
| Class B Insulation | 56Y are Keyed; 56YZ are Flat Shaft |
| Manual Reset Thermal Overload Protector | Reversible Rotation |
| 1/2 HP & Above Have ODE Shaft Extension for Hand Crank | Footed (except where noted) |
Tech Specs | |
Brand |
U.S. Motors/Emerson |
U.S. Motors Model Number |
FD13SM2DZYR |
HP |
1/3 |
RPM |
1800 |
Voltage |
208-230/460 |
Phase |
Three Phase |
Frame |
56Y |
SF |
1 |
C Dim. (inches) |
11.25 |
Full Load Amps |
1.8-2.0/1.0 |
Type |
Auger Duty Motor |
Notes |
See Product Literature |
Apx. Wt. (lbs.) |
26 |
Support Documents (pdf) | ||||
| Product Literature | ||||
