U.S. Motors

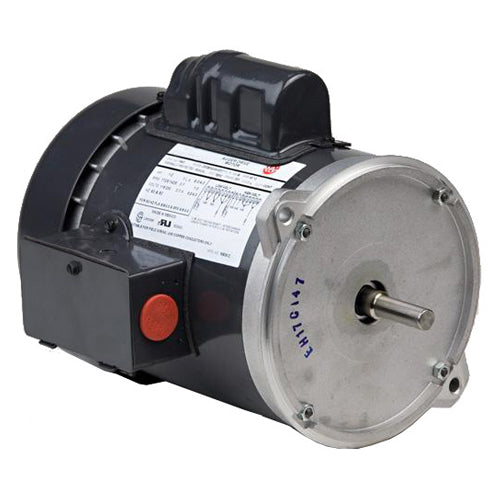

FD13BM2PZYR U.S. Motors Auger Duty Motors (1/3 HP, 115/230 Voltage, Split Phase Phase, 1800 RPM)
FD13BM2PZYR U.S. Motors Auger Duty Motors (1/3 HP, 115/230 Voltage, Split Phase Phase, 1800 RPM)
SKU:FD13BM2PZYR
Regular price
$288.41 USD
Regular price
Sale price
$288.41 USD
Unit price
/
per
Shipping calculated at checkout.
Don't see the price?
Don't see the price?
Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.
Couldn't load pickup availability
U.S. Motors: FD13BM2PZYR, HP: 1/3, RPM: 1800, Voltage: 115/230, Phase: Split Phase, Frame: 56YZ, C Dim. (inches): 11.5, Full Load Amps: 5.3/2.6 & 5.9/3.0, Type: Auger Duty Motor,
| Applications | |
| For use on augers. | |
| Features | |
| Totally Enclosed Fan Cooled (except where noted) | Ball Bearings |
| Class B Insulation | 56Y are Keyed; 56YZ are Flat Shaft |
| Manual Reset Thermal Overload Protector | Reversible Rotation |
| 1/2 HP & Above Have ODE Shaft Extension for Hand Crank | Footed (except where noted) |
Tech Specs | |
Brand |
U.S. Motors/Emerson |
U.S. Motors Model Number |
FD13BM2PZYR |
HP |
1/3 |
RPM |
1800 |
Voltage |
115/230 |
Phase |
Split Phase |
Frame |
56YZ |
SF |
1 |
C Dim. (inches) |
11.5 |
Full Load Amps |
5.3/2.6 & 5.9/3.0 |
Type |
Auger Duty Motor |
Notes |
See Product Literature |
Apx. Wt. (lbs.) |
22 |
Support Documents (pdf) | ||||
| Product Literature | ||||
